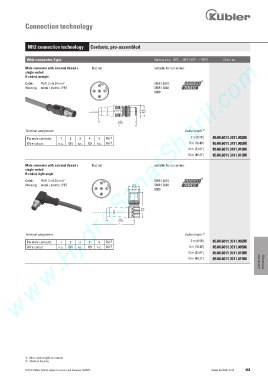

Page 465 - Keubler Motion Sensors

Connection technology

M12 connection technology Cordsets, pre-assembled

www.HydroSanatSharif.com
With connector, 5 pin Working temp. -30°C ... +80°C [-22°F ... +176°F] Order no.
Male connector with external thread + Bus out suitable for our series:
single-ended
B coded, straight
Cable: PUR, 2 x 0.34 mm 2 5858 / 5878
2
Housing: metal / plastic, IP67 5868 / 5888
3 5 1 9080
4

Terminal assignment Cable length 1)
Pin male contacts: 1 2 3 4 5 PH 2) 2 m [6.56‘] 05.00.6011.3411.002M
Wire colour: n.c. GN n.c. RD n.c. PH 2) 5 m [16.40‘] 05.00.6011.3411.005M
10 m [32.81‘] 05.00.6011.3411.010M
15 m [49.21‘] 05.00.6011.3411.015M

Male connector with external thread + Bus out suitable for our series:
single-ended
B coded, right-angle
Cable: PUR, 2 x 0.34 mm 2 5858 / 5878
2
Housing: metal / plastic, IP67 5868 / 5888
3 5 1 9080
4

Terminal assignment Cable length 1)

Pin male contacts: 1 2 3 4 5 PH 2) 2 m [6.56‘] 05.00.6011.3511.002M
Wire colour: n.c. GN n.c. RD n.c. PH 2) 5 m [16.40‘] 05.00.6011.3511.005M
10 m [32.81‘] 05.00.6011.3511.010M
Connection technology
15 m [49.21‘] 05.00.6011.3511.015M

1) Other cable lengths on request.
2) Shield on housing.
