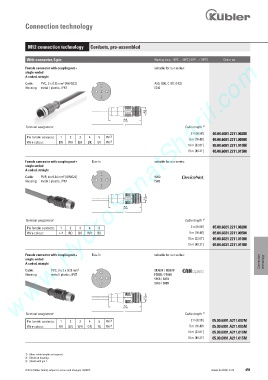

Connection technology

M12 connection technology Cordsets, pre-assembled

www.HydroSanatSharif.com
With connector, 5 pin Working temp. -30°C ... +80°C [-22°F ... +176°F] Order no.
Female connector with coupling nut + suitable for our series:
single-ended
A coded, straight
2
Cable: PVC, 5 x 0.25 mm [AWG23] A50, B80, C120, D135
2
Housing: metal / plastic, IP67 IS40
1 5 3
4

Terminal assignment Cable length 1)
2 m [6.56‘] 05.00.6081.2211.002M
Pin female contacts: 1 2 3 4 5 PH 2) 5 m [16.40‘] 05.00.6081.2211.005M
Wire colour: BN WH BU BK GY PH 2)
10 m [32.81‘] 05.00.6081.2211.010M
15 m [49.21‘] 05.00.6081.2211.015M

Female connector with coupling nut + Bus-in suitable for our series:
single-ended
A coded, straight
2
2
Cable: PUR, 4 x 0.34 mm [AWG22] 9080
Housing: metal / plastic, IP67 1 5 3 IS60
4

Terminal assignment Cable length 1)
Pin female contacts: 1 2 3 4 5 2 m [6.56‘] 05.00.6021.2211.002M
Wire colour: ) 3) RD BK WH BU 5 m [16.40‘] 05.00.6021.2211.005M
10 m [32.81‘] 05.00.6021.2211.010M
15 m [49.21‘] 05.00.6021.2211.015M

Female connector with coupling nut + Bus-in suitable for our series:
single-ended
A coded, straight Connection technology
Cable: PVC, 3 x 2 x 0.25 mm 2 M3658 / M3678
2
Housing: metal / plastic, IP67 F5868 / F5888
1 5 3 5858 / 5878
4 5868 / 5888

Terminal assignment Cable length 1)

Pin female contacts: 1 2 3 4 5 PH 2) 2 m [6.56‘] 05.00.6091.A211.002M
Wire colour: GY BN WH GN YE PH 2) 5 m [16.40‘] 05.00.6091.A211.005M
10 m [32.81‘] 05.00.6091.A211.010M
15 m [49.21‘] 05.00.6091.A211.015M

1) Other cable lengths on request.
2) Shield on housing.
3) Shield with pin 1.
© Fritz Kübler GmbH, subject to errors and changes. 02/2015 www.kuebler.com 459
