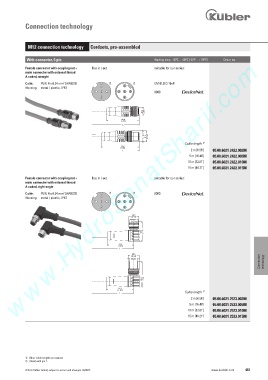

P. 463
Connection technology
M12 connection technology Cordsets, pre-assembled
www.HydroSanatSharif.com
With connector, 5 pin Working temp. -30°C ... +80°C [-22°F ... +176°F] Order no.
Female connector with coupling nut + Bus in / out suitable for our series:
male connector with external thread
A coded, straight
2
Cable: PUR, 4 x 0.34 mm [AWG22] 2) 2) EMIO.SIO.10xP
2 2
Housing: metal / plastic, IP67
1 5 3 3 5 1 9080
4 4
Cable length 1)
2 m [6.56‘] 05.00.6021.2422.002M
5 m [16.40‘] 05.00.6021.2422.005M
10 m [32.81‘] 05.00.6021.2422.010M
15 m [49.21‘] 05.00.6021.2422.015M
Female connector with coupling nut + Bus in / out suitable for our series:
male connector with external thread
A coded, right-angle
2
Cable: PUR, 4 x 0.34 mm [AWG22] 2) 2) 9080
2 2
Housing: metal / plastic, IP67
1 5 3 3 5 1
4 4
Connection technology
Cable length 1)
2 m [6.56‘] 05.00.6021.2523.002M
5 m [16.40‘] 05.00.6021.2523.005M
10 m [32.81‘] 05.00.6021.2523.010M
15 m [49.21‘] 05.00.6021.2523.015M
1) Other cable lengths on request.
2) Shield with pin 1.
© Fritz Kübler GmbH, subject to errors and changes. 02/2015 www.kuebler.com 461
