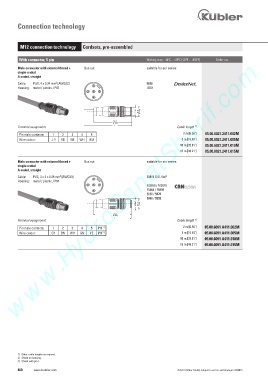

Connection technology

M12 connection technology Cordsets, pre-assembled

www.HydroSanatSharif.com
With connector, 5 pin Working temp. -30°C ... +80°C [-22°F ... +176°F] Order no.
Male connector with external thread + Bus out suitable for our series:
single-ended
A coded, straight
2
Cable: PUR, 4 x 0.34 mm [AWG22] 9080
2
Housing: metal / plastic, IP67 IS60
3 5 1
4

Terminal assignment Cable length 1)
Pin male contacts: 1 2 3 4 5 2 m [6.56‘] 05.00.6021.2411.002M
Wire colour: ) 3) RD BK WH BU 5 m [16.40‘] 05.00.6021.2411.005M
10 m [32.81‘] 05.00.6021.2411.010M
15 m [49.21‘] 05.00.6021.2411.015M

Male connector with external thread + Bus out suitable for our series:
single-ended
A coded, straight
2
Cable: PVC, 3 x 2 x 0.25 mm [AWG23] EMIO.SIO.10xP
2
Housing: metal / plastic, IP67
3 5 1 M3658 / M3678
4 F5868 / F5888
5858 / 5878
5868 / 5888

Terminal assignment Cable length 1)
Pin male contacts: 1 2 3 4 5 PH 2) 2 m [6.56‘] 05.00.6091.A411.002M
Wire colour: GY BN WH GN YE PH 2) 5 m [16.40‘] 05.00.6091.A411.005M
10 m [32.81‘] 05.00.6091.A411.010M
15 m [49.21‘] 05.00.6091.A411.015M

1) Other cable lengths on request.
2) Shield on housing.
3) Shield with pin 1.
460 www.kuebler.com © Fritz Kübler GmbH, subject to errors and changes. 02/2015
