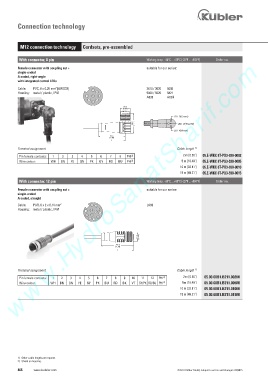

Page 468 - Keubler Motion Sensors

Connection technology

M12 connection technology Cordsets, pre-assembled

www.HydroSanatSharif.com
With connector, 8 pin Working temp. -30°C ... +80°C [-22°F ... +176°F] Order no.
Female connector with coupling nut + suitable for our series:
single-ended
A coded, right-angle
with integrated control LEDs
2
Cable: PVC, 8 x 0.25 mm [AWG23] 3610 / 3620 5006
2
Housing: metal / plastic, IP67 3 5000 / 5020 5821
1 8 4 A020 A02H
7 5
6

Terminal assignment Cable length 1)
Pin female contacts: 1 2 3 4 5 6 7 8 PH 2) 2 m [6.56‘] 05.E-WKC 8T-PX3-930-0002
Wire colour: WH BN YE GN PK GY RD BU PH 2) 5 m [16.40‘] 05.E-WKC 8T-PX3-930-0005
10 m [32.81‘] 05.E-WKC 8T-PX3-930-0010
15 m [49.21‘] 05.E-WKC 8T-PX3-930-0015
With connector, 12 pin Working temp. -30°C ... +90°C [-22°F ... +194°F] Order no.
Female connector with coupling nut + suitable for our series:
single-ended
A coded, straight
Cable: PUR, 6 x 2 x 0.14 mm 2 2 3 LA10
Housing: metal / plastic, IP67 10 4
1 11 5
9 12
8 7 6

Terminal assignment Cable length 1)

Pin female contacts: 1 2 3 4 5 6 7 8 9 10 11 12 PH 2) 2 m [6.56‘] 05.00.60B1.B211.002M
Wire colour: WH BN GN YE GY PK BU RD BK VT GY/PK RD/BU PH 2) 5m [16.40‘] 05.00.60B1.B211.005M
10 m [32.81‘] 05.00.60B1.B211.010M
15 m [49.21‘] 05.00.60B1.B211.015M

1) Other cable lengths on request.
2) Shield on housing.
