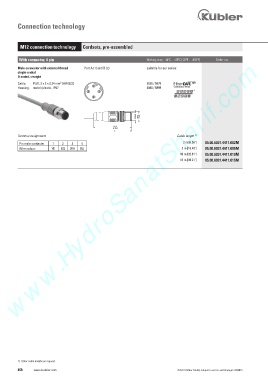

Connection technology
M12 connection technology Cordsets, pre-assembled
www.HydroSanatSharif.com
With connector, 4 pin Working temp. -30°C ... +80°C [-22°F ... +176°F] Order no.
Male connector with external thread Port A (1) and B (2) suitable for our series:
single-ended
D coded, straight
2
Cable: PUR, 2 x 2 x 0.34 mm [AWG22] 5858 / 5878
2
Housing: metal /plastic, IP67 5868 / 5888
3 1
4
Terminal assignment Cable length 1)
Pin male contacts: 1 2 3 4 2 m [6.56‘] 05.00.6031.4411.002M
Wire colour: YE OG WH BU 5 m [16.40‘] 05.00.6031.4411.005M
10 m [32.81‘] 05.00.6031.4411.010M
15 m [49.21‘] 05.00.6031.4411.015M
1) Other cable lengths on request.
