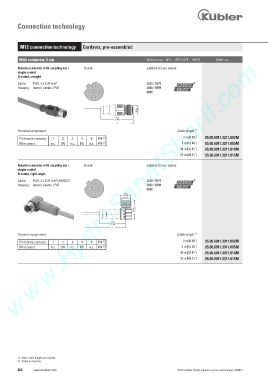

Connection technology

M12 connection technology Cordsets, pre-assembled

www.HydroSanatSharif.com
With connector, 5 pin Working temp. -30°C ... +80°C [-22°F ... +176°F] Order no.
Female connector with coupling nut + Bus in suitable for our series:
single-ended
B coded, straight
Cable: PUR, 2 x 0.34 mm 2 5858 / 5878
2
Housing: metal / plastic, IP67 5868 / 5888
1 5 3 9080
4

Terminal assignment Cable length 1)
Pin female contacts: 1 2 3 4 5 PH 2) 2 m [6.56‘] 05.00.6011.3211.002M
Wire colour: n.c. GN n.c. RD n.c. PH 2) 5 m [16.40‘] 05.00.6011.3211.005M
10 m [32.81‘] 05.00.6011.3211.010M
15 m [49.21‘] 05.00.6011.3211.015M

Female connector with coupling nut + Bus in suitable for our series:
single-ended
B coded, right-angle
2
Cable: PUR, 2 x 0.34 mm [AWG22] 5858 / 5878
2
Housing: metal / plastic, IP67 5868 / 5888
1 5 3 9080
4

Terminal assignment Cable length 1)

Pin female contacts: 1 2 3 4 5 PH 2) 2 m [6.56‘] 05.00.6011.3311.002M
Wire colour: n.c. GN n.c. RD n.c. PH 2) 5 m [16.40‘] 05.00.6011.3311.005M
10 m [32.81‘] 05.00.6011.3311.010M
15 m [49.21‘] 05.00.6011.3311.015M

1) Other cable lengths on request.
2) Shield on housing.
