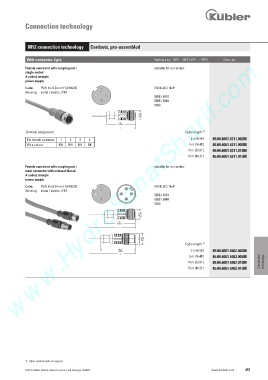

Connection technology
M12 connection technology Cordsets, pre-assembled
www.HydroSanatSharif.com
With connector, 4 pin Working temp. -30°C ... +80°C [-22°F ... +176°F] Order no.
Female connector with coupling nut + suitable for our series:
single-ended
A coded, straight
power supply
2
Cable: PUR, 4 x 0.34 mm [AWG22] EMIO.SIO.10xP
2
Housing: metal / plastic, IP67
1 3
5858 / 5878
4 5868 / 5888
9080
Terminal assignment Cable length 1)
2 m [6.56‘]
Pin female contacts: 1 2 3 4 05.00.6061.6211.002M
Wire colour: BN WH BU BK 5 m [16.40‘] 05.00.6061.6211.005M
10 m [32.81‘] 05.00.6061.6211.010M
15 m [49.21‘] 05.00.6061.6211.015M
Female connector with coupling nut + suitable for our series:
male connector with external thread
A coded, straight
power supply
2
Cable: PUR, 4 x 0.34 mm [AWG22] EMIO.SIO.10xP
Housing: metal / plastic, IP67 2 2
1 3 3 1 5858 / 5878
4 4 5868 / 5888
9080
Cable length 1)
2 m [6.56‘] 05.00.6061.6462.002M
5 m [16.40‘] 05.00.6061.6462.005M
10 m [32.81‘] 05.00.6061.6462.010M Connection technology
15 m [49.21‘] 05.00.6061.6462.015M
1) Other cable lengths on request.
