Connection technology

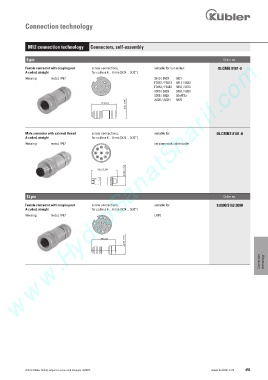

M12 connection technology Connectors, self-assembly
www.HydroSanatSharif.com
8 pin Order no.
Female connector with coupling nut screw connections, suitable for our series: 05.CMB 8181-0
A coded, straight for cable ø 6 ... 8 mm [0.24 ... 0.32“]
Housing: metal, IP67 3610 / 3620 5821
2
3 F3653 / F3673 5814 / 5834
1 8 4 F3663 / F3683 5853 / 5873
7 5 5000 / 5020 5863 / 5883
6
5006 / 5026 58x4FSx
A020 / A02H 5876
Male connector with external thread screw connections, suitable for: 05.CMBS 8181-0
A coded, straight for cable ø 6 ... 8 mm [0.24 ... 0.32“]
Housing: metal, IP67 versions with cable outlet
2
3
4 8 1
5 7
6
12 pin Order no.
Female connector with coupling nut screw connections, suitable for: 8.0000.5162.0000
A coded, straight for cable ø 6 ... 8 mm [0.24 ... 0.32“]
Housing: metal, IP67 LA10
2 3
4
1 10 11 5
9 12 6
8 7
