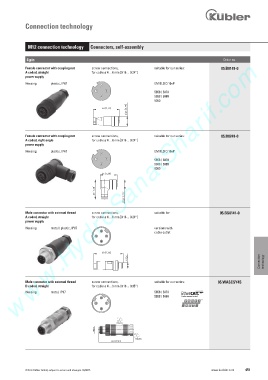

Connection technology

M12 connection technology Connectors, self-assembly

www.HydroSanatSharif.com
4 pin Order no.
Female connector with coupling nut screw connections, suitable for our series: 05.B8141-0
A coded, straight for cable ø 4 ... 6 mm [0.16 ... 0.24“]
power supply
Housing: plastic, IP67 EMIO.SIO.10xP
2
1 3 5858 / 5878
4 5868 / 5888
9080

Female connector with coupling nut screw connections, suitable for our series: 05.B8241-0
A coded, right-angle for cable ø 4 ... 6 mm [0.16 ... 0.24“]
power supply
Housing: plastic, IP67 EMIO.SIO.10xP
2
1 3 5858 / 5878
4 5868 / 5888
9080

Male connector with external thread screw connections, suitable for: 05.BS8141-0
A coded, straight for cable ø 4 ... 6 mm [0.16 ... 0.24“]
power supply
Housing: metal / plastic, IP67 versions with
2
cable outlet
3 1
4

[
0 Connection technology

Male connector with external thread screw connections, suitable for our series: 05.WASCSY4S
D coded, straight for cable ø 4 ... 9 mm [0.16 ... 0.35“]
Housing: metal, IP67 5858 / 5878
5868 / 5888
2
3 1
4

4 >0,55@

0 [

> @
PD[
