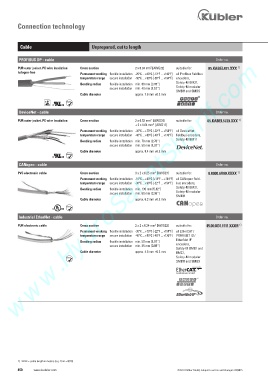

Connection technology

Cable Unprepared, cut to length

www.HydroSanatSharif.com
PROFIBUS DP - cable Order no.
2
PUR outer jacket, PE wire insulation Cross section 2 x 0.34 mm [AWG22] suitable for: 05.KABEL451.XXX 1)
halogen-free
Permanent working flexible installation -25°C ... +60°C [-13°F ... +140°F] all Profibus fieldbus
temperature range secure installation -50°C ... +90°C [-58°F ... +194°F] encoders,
Safety-M BM31,
Bending radius flexible installation min. 80 mm [3.15“]
secure installation min. 40 mm [1.57“] Safety-M modular
SMBU and SMBS
Cable diameter approx. 7.6 mm ±0.2 mm
RoHS

DeviceNet - cable Order no.
2
PUR outer jacket, PE wire insulation Cross section 2 x 0.52 mm [AWG24] suitable for: 05.KABEL5723.XXX 1)
+ 2 x 1.04 mm [AWG17]
2
Permanent working flexible installation -30°C ... +70°C [-22°F ... +158°F] all DeviceNet
temperature range secure installation -40°C ... +80°C [-40°F ... +176°F] fieldbus encoders,
Safety-M BM11
Bending radius flexible installation min. 70 mm [2.76“]
secure installation min. 50 mm [1.97“]
Cable diameter approx. 8.4 mm ±0.2 mm
RoHS
CANopen - cable Order no.
2
PVC electronic cable Cross section 3 x 2 x 0.25 mm [AWG23] suitable for: 8.0000.6V00.XXXX 1)
Permanent working flexible installation -10°C ... +90°C [+14°F ... +194°F] all CANopen field-
temperature range secure installation -30°C ... +90°C [-22°F ... +194°F] bus encoders,
Safety-M BM21,
Bending radius flexible installation min. 130 mm [5.12“]
secure installation min. 60 mm [2.36“] Safety-M modular
SMBU
Cable diameter approx. 6.2 mm ±0.2 mm
RoHS

Industrial EtherNet - cable Order no.
2
PUR electronic cable Cross section 2 x 2 x 0.34 mm [AWG22] suitable for: 05.00.6031.1111.XXXM 1)
Permanent working flexible installation -30°C ... +70°C [-22°F ... +158°F] all EtherCAT /
temperature range secure installation -40°C ... +80°C [-40°F ... +176°F] PROFINET IO /
EtherNet IP
Bending radius flexible installation min. 50 mm [1.97“]
secure installation min. 25 mm [0.98“] encoders,
Safety-M BMB1 and
Cable diameter approx. 4.8 mm ±0.2 mm BMC1,
Safety-M modular
RoHS
SMBU and SMBS

1) XXXX = cable length in meters (e.g. 10 m = 0010)
450 www.kuebler.com © Fritz Kübler GmbH, subject to errors and changes. 02/2015
