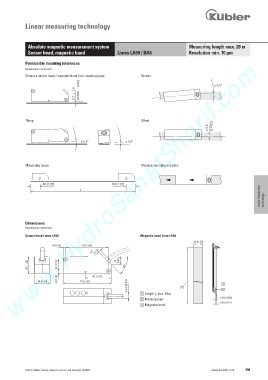

P. 401
Linear measuring technology
Absolute magnetic measurement system Measuring length max. 20 m
Sensor head, magnetic band Limes LA50 / BA5 Resolution min. 10 µm
www.HydroSanatSharif.com
Permissible mounting tolerances
Dimensions in mm [inch]
Distance sensor head / magnetic band (incl. masking tape) Torsion
± 0,5°
0,1 ... 1,5 [0.004 ... 0.06]
Tilting Offset
± 0,5 [± 0.02]
± 0,5° ± 0,5°
Measuring range Observe mounting direction
50 [1.97] 50 [1.97]
Linear measuring technology
L
Dimensions
Dimensions in mm [inch]
Sensor head Limes LA50 Magnetic band Limes BA5
20 [0.79]
4 [0.16] 67 [2.64]
3,5 [0.14]
26 [1.02] 18 [0.71] 12 [0.47] 45°
4 [0.16] 40 [1.57]
ø 6,2 [0.24] 1 2 3
24 [0.94] 75 [2.95]
1 Length L, max. 20 m
1.43 [0.056]
2 Masking tape
1.80 [0.071]
3 Magnetic band
© Fritz Kübler GmbH, subject to errors and changes. 02/2015 www.kuebler.com 399
