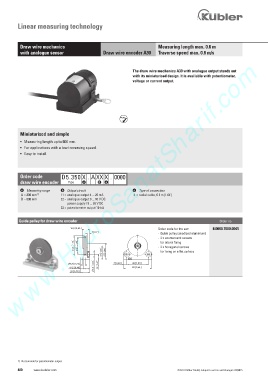

Linear measuring technology

Draw wire mechanics Measuring length max. 0.6 m
with analogue sensor Draw wire encoder A30 Traverse speed max. 0.8 m/s
www.HydroSanatSharif.com

The draw wire mechanics A30 with analogue output stands out
with its miniaturised design. It is available with potentiometer,
voltage or current output.

RoHS

Miniaturised and simple

• Measuring length up to 600 mm.
• For applications with a low traversing speed.
• Easy to install.

Order code D5.350 X . A XX X 0000.
draw wire encoder Type a b c
a Measuring range b Output circuit c Type of connection
A = 300 mm 1) 11 = analogue output 4 ... 20 mA 4 = radial cable, 0.5 m [1.64‘]
B = 600 mm 22 = analogue output 0 ... 10 V DC
power supply 15 ... 28 V DC
33 = potentiometer output 10 k1

Guide pulley for draw wire encoder Order no.
Order code for the set: 8.0000.7000.0045

- Guide pulley (anodised aluminium)
- 2 x countersunk screws
for lateral fixing
- 2 x hexagonal screws
for fixing on a flat surface

1) Not suirable for potentiometer output.
