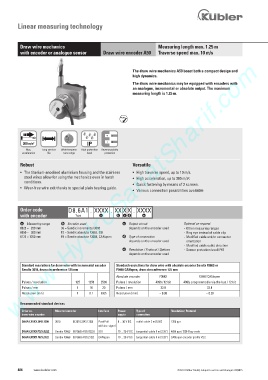

Linear measuring technology

Draw wire mechanics Measuring length max. 1.25 m
with encoder or analogue sensor Draw wire encoder A50 Traverse speed max. 10 m/s
www.HydroSanatSharif.com

The draw wire mechanics A50 boast both a compact design and
high dynamics.

The draw wire mechanics may be equipped with encoders with
an analogue, incremental or absolute output. The maximum
measuring length is 1.25 m.

RoHS

300 m/s 2 IP
Max. Long service Wide tempera- High protection Reverse polarity
acceleration life ture range level protection

Robust Versatile
• The titanium-anodised aluminium housing and the stainless • High traverse speed, up to 10 m/s.
steel wires allow for using the mechanics even in harsh • High acceleration, up to 300 m/s².
conditions.
• Quick fastening by means of 2 screws.
• Wear-free wire exit thanks to special plain bearing guide.
• Various connection possibilities available.

Order code D8.6A1 XXXX. . XX X X XXXX.
with encoder Type a b c d e

a Measuring range b Encoder used c Output circuit Optional on request
0025 = 250 mm 36 = Sendix incremental 3610 depends on the encoder used - Other measuring ranges
0050 = 500 mm F3 = Sendix absolute F3663, SSi - Ring eye instead of cable clip
0125 = 1250 mm F8 = Sendix absolute F3668, CANopen d Type of connection - Modified cable and/or connector
depends on the encoder used orientation
- Modified cable outlet direction
e Resolution / Protocol / Options - Sensor protection level IP67
depends on the encoder used

Standard resolutions for draw wire with incremental encoder Standard resolutions for draw wire with absolute encoder Sendix F3663 or
Sendix 3610, drum circumference 125 mm F3668 CANopen, drum circumference 125 mm
Absolute encoder F3663 F3668 CANopen
Pulses / revolution 125 1250 2500 Pulses / revolution 4096 / 12 bit 4096, programmable via the bus / 12 bit
Pulses / mm 1 10 20 Pulses / mm 32.8 32.8
Resolution (mm) 1 0.1 0.05 Resolution (mm) ~ 0.03 ~ 0.03

Recommended standard devices
Order no. Mounted encoder Interface Power Type of Resolution / Protocol
draw wire encoder supply connection
D8.6A1.XXXX.3642.1250 3610 (8.3610.2342.1250) PushPull 8 ... 30 V DC radial cable 2 m [6.56‘] 1250 ppr
with inv. signal
D8.6A1.XXXX.F321.G222 Sendix F3663 (8.F3663.4121.G222) SSI 10 ... 30 V DC tangential cable 1 m [3.28‘] 4096 ppr / SSI-Gray code
D8.6A1.XXXX.F821.2122 Sendix F3668 (8.F3663.4121.2122) CANopen 10 ... 30 V DC tangential cable 1 m [3.28‘] CANopen encoder profile V3.2
