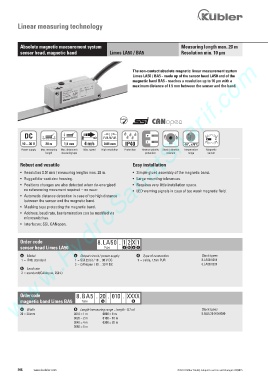

Linear measuring technology

Absolute magnetic measurement system Measuring length max. 20 m
sensor head, magnetic band Limes LA50 / BA5 Resolution min. 10 µm
www.HydroSanatSharif.com

The non-contact absolute magnetic linear measurement system
Limes LA50 / BA5 - made up of the sensor head LA50 and of the
magnetic band BA5 - reaches a resolution up to 10 µm with a
maximum distance of 1.5 mm between the sensor and the band.

RoHS

DC
10 ... 30 V 20 m 1,5 mm 4 m/s 0.01 mm IP40 -10°... +70°C
Power supply Max. measuring Max. distance to Max. speed High resolution Protection Reverse polarity Shock / vibration Temperature Magnetic
length measuring tape protection resistant range sensor

Robust and vesatile Easy installation
• Resolution 0.01 mm / measuring lengths max. 20 m. • Simple glued assembly of the magnetic band.
• Rugged die-cast zinc housing. • Large mounting tolerances.
• Positions changes are also detected when de-energised • Requires very little installation space.
no referencing movement required – no wear. • LED warning signals in case of too weak magnetic field.
• Automatic distance detection in case of too high distance
between the sensor and the magnetic band. "
"
• Masking tape protecting the magnetic band.
• Address, baud rate, bus termination can be modified via
microswitches.
• Interfaces: SSI, CANopen.

Order code 8.LA50 . 1 2 X 1
sensor head Limes LA50 Type a b c d
a Model c Output circuit / power supply d Type of connection Stock types
1 = IP40, standard 1 = SSI 25 bit / 10 ... 30 V DC 1 = cable, 1.5 m PUR 8.LA50.1211
3 = CANopen / 10 ... 30 V DC 8.LA50.1231
b baud rate
2 = standard (CANopen, 250 k)

Order code 8.BA5 . 20 . 010 . XXXX
magnetic band Limes BA5 Type a b
a Width b Length (measuring range = length - 0.1 m) Stock types
20 = 20 mm 0010 = 1 m 0060 = 6 m 8.BA5.20.010.0200
0020 = 2 m 0100 = 10 m
0040 = 4 m 0200 = 20 m
0050 = 5 m
