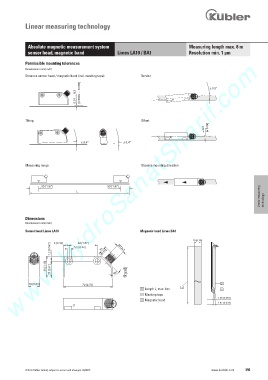

Page 397 - Keubler Motion Sensors

Linear measuring technology

Absolute magnetic measurement system Measuring length max. 8 m
sensor head, magnetic band Limes LA10 / BA1 Resolution min. 1 µm
www.HydroSanatSharif.com
Permissible mounting tolerances
Dimensions in mm [inch]
Distance sensor head / magnetic band (incl. masking tape) Torsion
± 0,5°

0,01 ... 0,2 [0.0004 ... 0.008]

Tilting Offset
± 0,5 [± 0.02]

± 0,4° ± 0,4°

Measuring range Observe mounting direction

Linear measuring technology
50 [1.97] 50 [1.97]
L

Dimensions
Dimensions in mm [inch]
Sensor head Limes LA10 Magnetic band Limes BA1
10 [0.39]
40 [1.57]
8 [0.32]
1,2 [0.047] 5,5 [0.22] 13 [0.51] M12x1

30 [1.18] 23 [0.91] 45° 15 [0.59]

16 [0.63] 70 [2.76] 2
1 Length L, max. 8 m 1 3
2 Masking tape
1.56 [0.061]
3 Magnetic band
1.97 [0.078]
