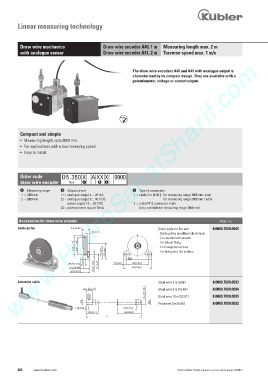

Linear measuring technology

Draw wire mechanics Draw wire encoder A40, 1 m Measuring length max. 2 m
with analogue sensor Draw wire encoder A41, 2 m Traverse speed max. 1 m/s
www.HydroSanatSharif.com

The draw wire encoders A40 and A41 with analogue output is
characterised by its compact design. They are available with a
potentiometer, voltage or current output.

RoHS

Compact and simple
• Measuring length up to 2000 mm.
• For applications with a low traversing speed.
• Easy to install.

Order code D5.350 X . A XX X 0000.
draw wire encoder Type a b c
a Measuring range b Output circuit c Type of connection
1 = 1000 mm 11 = analogue output 4 ... 20 mA 1 = cable 2 m [6.56‘] for measuring range 1000 mm: axial
2 = 2000 mm 22 = analogue output 0 ... 10 V DC for measuring range 2000 mm: radial
power supply 15 ... 28 V DC 2 = radial M12 connector, 4-pin
33 = potentiometer output 10 k1 (only available for measuring range 2000 mm)

Accessories for draw wire encoder Order no.
Guide pulley Order code for the set: 8.0000.7000.0045

- Guide pulley (anodised aluminium)
- 2 x countersunk screws
for lateral fixing
- 2 x hexagonal screws
for fixing on a flat surface

Extension cable Steel wire 2 m [6.56‘] 8.0000.7000.0033
PD[ PD[

Steel wire 5 m [16.40‘] 8.0000.7000.0034
Steel wire 10 m [32.81‘] 8.0000.7000.0035

0 0
Paraleine 2 m [6.56‘] 8.0000.7000.0032

/ /

402 www.kuebler.com © Fritz Kübler GmbH, subject to errors and changes. 02/2015
