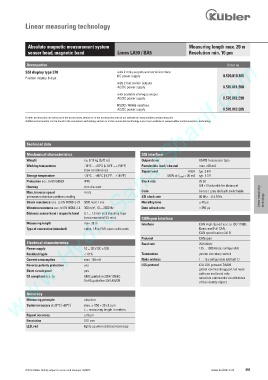

Linear measuring technology

Absolute magnetic measurement system Measuring length max. 20 m
sensor head, magnetic band Limes LA50 / BA5 Resolution min. 10 µm
www.HydroSanatSharif.com
Accessories Order no.
SSI display type 570 with 2 relay outputs and serial interface
DC power supply 0.570.010.305
Position display, 6-digit
with 2 fast switch outputs
AC/DC power supply 0.570.011.E00
with scalable analogue output
AC/DC power supply 0.570.012.E90
RS232 / RS485 interface
AC/DC power supply 0.570.012.E05
Further accessories can be found in the accessories section or in the accessories area of our website at: www.kuebler.com/accessories.
Additional connectors can be found in the connection technology section or in the connection technology area of our website at: www.kuebler.com/connection_technology.

Technical data
Mechanical characteristics SSI interface
Weight ca. 0.19 kg [6.70 oz] Output driver RS485 transceiver type
Working temperature -10°C ... +70°C [+14°F ... +158°F] Permissible load / channel max. ±20 mA
(non condensing)
Signal level HIGH typ. 3.8 V
Storage temperature -25°C ... +85°C [-13°F ... +185°F] LOW at I Load = 20 mA typ. 1.3 V
Protection acc. to EN 60529 IP40 Clock rate 25 bit
Housing zinc die-cast (24 + 1 failurebit for distance)
Max. traverse speed 4 m/s Code binary / gray (default) switchable
permanent absolute positions reading SSI clock rate 80 kHz ... 0.4 MHz Linear measuring
Shock resistance acc. to EN 60068-2-27 5000 m/s², 1 ms Monoflop time ) 40 µs technology
Vibration resistance acc. to EN 60068-2-6 300 m/s², 10 ... 2000 Hz Data refresh rate ) 250 µs
Distance sensor head / magnetic band 0.1 ... 1.5 mm incl. masking tape
(recommended 0.5 mm) CANopen interface
Measuring length max. 20 m Interface CAN High-Speed acc. to ISO 11898,
Type of connection (standard) cable, 1.5 m PUR, open cable ends Basic and Full CAN,
CAN specification 2.0 B
Protocol CANopen
Electrical characteristics Baud rate 250 kbit/s;
Power supply 10 ... 30 V DC ±10% 125 ... 1000 kbit/s configurable
Residual ripple < 10 % Termination yes/no via rotary switch
Current consumption max. 150 mA Node address 1 ... 15 configurable (default 1)
Reverse polarity protection yes LSS protocol CIA LSS protocol DS305
global command support for node
Short circuit proof yes
address and baud rate
CE compliant acc. to EMC guideline 2004/108/EC selective commands via attributes
RoHS guideline 2011/65/EU
of the identity object
Accuracy
Measuring principle absolute
System accuracy at 20°C [+68°F] max. ± (150 + 20 x L) µm
L = measuring length in meters
Repeat accuracy ±10 µm
Resolution 0.01 mm
LED, red lights up when distance too large

© Fritz Kübler GmbH, subject to errors and changes. 02/2015 www.kuebler.com 397
