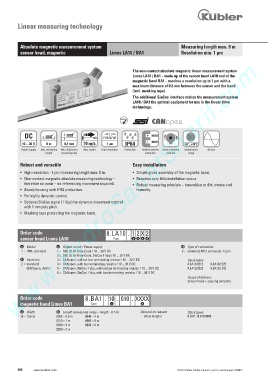

Linear measuring technology

Absolute magnetic measurement system Measuring length max. 8 m
sensor head, magnetic Limes LA10 / BA1 Resolution min. 1 µm
www.HydroSanatSharif.com

The non-contact absolute magnetic linear measurement system
Limes LA10 / BA1 - made up of the sensor head LA10 and of the
magnetic band BA1 - reaches a resolution up to 1 µm with a
maximum distance of 0.2 mm between the sensor and the band
(incl. masking tape).
The additional SinCos interface makes the measurement system
LA10 / BA1 the optimal equipment for use in the linear drive
technology.

RoHS

DC
10 ... 30 V 8 m 0,2 mm 10 m/s 1 µm IP64 -10°... +70°C
Power supply Max. measuring Max. distance to Max. speed High resolution Protection Reverse polarity Shock / vibration Temperature SinCos
length measuring tape protection resistant range

Robust and versatile Easy installation
• High resolution - 1µm / measuring length max. 8 m. • Simple glued assembly of the magnetic band.
• Non-contact magnetic absolute measuring technology – • Requires very little installation space.
therefore no wear – no referencing movement required. • Robust measuring principle – insensitive to dirt, smoke and
• Sturdy housing with IP64 protection. humidity.
• For highly dynamic control.
• Optional SinCos signal (1 Vpp) for dynamic movement control
with 1 mm pole pitch.
• Masking tape protecting the magnetic band.

Order code 8.LA10 . 1 2 X 2
sensor head Limes LA10 Type a b c d
a Model c Output circuit / Power supply d Type of connection
1 = IP64, standard 1 = SSI, 25 bit Gray-Code / 10 ... 30 V DC 2 = standard, M12 connector, 12 pin
2 = SSI, 25 bit Gray-Code, SinCos 1 Vpp / 10 ... 30 V DC
b baud rate 3 = CANopen, without bus terminating resistor / 10 ... 30 V DC Stock types
2 = standard 4 = CANopen, with bus terminating resistor / 10 ... 30 V DC 8.LA10.1212 8.LA10.1222
(CANopen, 250 k) 5 = CANopen, SinCos 1 Vpp, without bus terminating resistor / 10 ... 30 V DC 8.LA10.1232 8.LA10.1242
6 = CANopen, SinCos 1 Vpp, with bus terminating resistor / 10 ... 30 V DC
Scope of delivery
sensor head + spacing template

Order code 8.BA1 . 10 . 010 XXXX.
magnetic band Limes BA1 Type a b
a Width b Length (measuring range = length - 0.1 m) Optional on request Stock types
10 = 10 mm 0005 = 0.5 m 0040 = 4 m - other lengths 8.BA1.10.010.0080
0010 = 1 m 0060 = 6 m
0020 = 2 m 0080 = 8 m
0030 = 3 m
