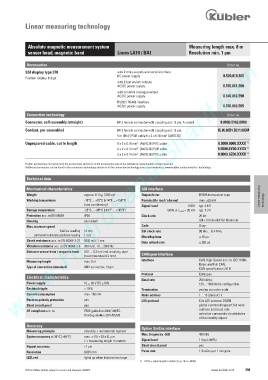

Linear measuring technology

Absolute magnetic measurement system Measuring length max. 8 m
sensor head, magnetic band Limes LA10 / BA1 Resolution min. 1 µm
www.HydroSanatSharif.com
Accessories Order no.
SSI display type 570 with 2 relay outputs and serial interface
DC power supply 0.570.010.305
Position display, 6-digit
with 2 fast switch outputs
AC/DC power supply 0.570.011.E00
with scalable analogue output
AC/DC power supply 0.570.012.E90
RS232 / RS485 interface
AC/DC power supply 0.570.012.E05
Connection technology Order no.

Connector, self-assembly (straight) M12 female connector with coupling nut, 12 pin, A coded 8.0000.5162.0000
Cordset, pre-assembled M12 female connector with coupling nut, 12 pin, 05.00.60B1.B211.005M
2
5 m [16.4‘] PUR cable 6 x 2 x 0.14 mm [AWG 26]
1)
2
Unprepared cable, cut to length 6 x 2 x 0.14 mm [AWG 26] PVC cable 8.0000.6900.XXXX
1)
6 x 2 x 0.14 mm [AWG 26] PUR cable 8.0000.6Y00.XXXX
2
5 x 2 x 0.14 mm [AWG 26] PVC cable 8.0000.6Z00.XXXX 1)
2
Further accessories can be found in the accessories section or in the accessories area of our website at: www.kuebler.com/accessories.
Additional connectors can be found in the connection technology section or in the connection technology area of our website at: www.kuebler.com/connection_technology.
Technical data

Mechanical characteristics SSI interface
Weight approx. 0.1 kg [3.53 oz] Output driver RS485 transceiver type Linear measuring
Working temperature -10°C ... +70°C [+14°F ... +158°F] Permissible load / channel max. ±20 mA technology
(non condensing) Signal level HIGH typ. 3.8 V
Storage temperature -25°C ... +85°C [-13°F ... +185°F] LOW at I Load = 20 mA typ. 1.3 V
Protection acc. to EN 60529 IP64 Clock rate 25 bit
Housing aluminium (24 + 1 failurebit for distance)
Max. traverse speed Code Gray
SinCos reading 10 m/s SSI clock rate 80 kHz ... 0.4 MHz
permanent absolute positions reading 1 m/s
Monoflop time ) 40 µs
Shock resistance acc. to EN 60068-2-27 5000 m/s², 1 ms
Data refresh rate ) 250 µs
Vibration resistance acc. to EN 60068-2-6 300 m/s², 10 ... 2000 Hz
Distance sensor head / magnetic band 0.01 ... 0.2 mm incl. masking tape
(recommended 0.2 mm) CANopen interface
Measuring length max. 8 m Interface CAN High-Speed acc. to ISO 11898,
Basic and Full CAN,
Type of connection (standard) M12 connector, 12 pin
CAN specification 2.0 B
Protocol CANopen
Electrical characteristics
Baud rate 250 kbit/s;
Power supply 10 ... 30 V DC ±10% 125 ... 1000 kbit/s configurable
Residual ripple < 10 % Termination yes/no via order code
Current consumption max. 150 mA Node address 1 ... 15 (default 1)
Reverse polarity protection yes LSS protocol CIA LSS protocol DS305
Short circuit proof yes global command support for node
address and baud rate
CE compliant acc. to EMC guideline 2004/108/EC
selective commands via attributes
RoHS guideline 2011/65/EU
of the identity object
Accuracy
Option SinCos interface
Measuring principle absolute + incremental (option)
Max. frequency -3dB 400 kHz
System accuracy at 20°C [+68°F] max. ± (10 + 20 x L) µ m
L = measuring length in meters Signal level 1 Vpp (±10%)
Repeat accuracy ±1 µm Short circuit proof yes
Resolution 0.001 mm Pulse rate 1 SinCos per 1 mm pole
LED, red lights up when distance too large
1) XXXX = cable lenght in meters (e.g. 10 m = 0010).
