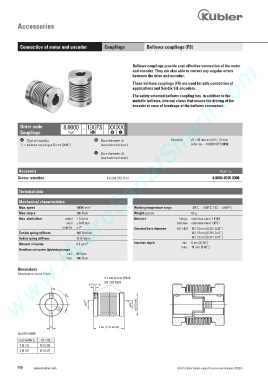

Accessories

Connection of motor and encoder Couplings Bellows couplings (FS)

www.HydroSanatSharif.com
Bellows couplings provide cost-effective connection of the motor
and encoder. They are also able to correct any angular errors
between the drive and encoder.

These bellows couplings (FS) are used for safe connection of
applications and Sendix SIL encoders.
The safety-oriented bellows coupling has, in addition to the
metallic bellows, internal claws that ensure the driving of the
encoder in case of breakage of the bellows connection.

Order code 8.0000 . 1 X FS . XX XX
Couplings Type a b c
a Type of coupling b Bore diameter d1 Example: d1 = 10 mm and d2 = 12 mm
5 = bellows coupling ø 25 mm [0.98“] (see technical data) order no. = 8.0000.15FS.1012
c Bore diameter d2
(see technical data)

Accessory Order no.
Screw retention Loctite 243, 5 ml 8.0000.4G05.0000

Technical data
Mechanical characteristics
Max. speed 10000 min -1 Working temperature range -30°C ... +120°C [-22 ... +248°F]
Max. torque 200 Ncm Weight approx. 54 g
Max. shaft offset radial ± 0.3 mm Material flange stainless steel 1.4104
axial ± 0.45 mm bellows stainless steel 1.4571
angular ± 3° Standard bore diameter (d1 / d2) 10 / 10 mm [0.39 / 0.39“]
Torsion spring stiffness 183 Nm/rad 10 / 12 mm [0.39 / 0.47“]
Radial spring stiffness 17.8 N/mm 12 / 12 mm [0.47 / 0.47“]
Moment of inertia 9.1 gcm 2 Insertion depth min. 6 mm [0.24“]
max. 11 mm [0.43“]
Headless set screw tightening torque
min. 80 Ncm
max. 100 Ncm

Dimensions
Dimensions in mm [inch]
4 x set screw M4x6
EN ISO 4029
2,75 [0.11]

ø25 [0.98]

b 31±1 [1.22 ±0.04]
Nut DIN 6885
nut width b d1 / d2
3 [0.12] 10 [0.39]
4 [0.16] 12 [0.47]
