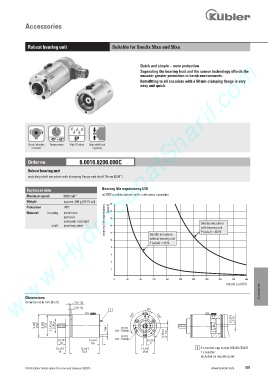

Page 509 - Keubler Motion Sensors

Accessories

Robust bearing unit Suitable for Sendix 50xx and 58xx

www.HydroSanatSharif.com
Quick and simple – more protection
Separating the bearing load and the sensor technology affords the
encoder greater protection in harsh environments.
Retrofitting to all encoders with a 58 mm clamping flange is very
easy and quick.

- 40° + 85° IP
Shock / vibration Temperature High IP value High shaft load
resistant capacity

8.0010.8200.000C.0010.8200.000C
Order no. 8
Robust bearing unit
matching shaft encoders with clamping flange and shaft 10 mm [0.39“]

Bearing life expectancy L10
Technical data
Maximum speed 6000 min -1 at 3000 revolutions/min with continuous operation
Weight approx. 560 g [19.75 oz]
20
bearing life expectancy 16
Protection IP67 [years]
Material housing aluminium 18
optional:
seawater resistant Sendix encoders
shaft stainless steel 14 with bearing unit
F (axial) = 40 N
12
Sendix encoders
without bearing unit
10
F (axial) = 40 N
8
6
4
2

0 40 80 120 160 200 240 280 320 360 400
radiale Last [N]
Accessories

Dimensions
Dimensions in mm [inch] 3 [0.12]
3 [0.12]
1 20°
120° 120°
0,39 10
2,28 58 2,08 53 1,42 f8 36 f8 [0,31]
M4
M3 - 8deep 10 f7
[0,31] 0,39 f7
0,79 0,34 M4 - 8deep 0,35
20 8,6 9
0,39 2,98 1,89 1 3 x socket cap screw M4x25 (SW3)
10 75,8 48 1 x washer
included as mounting set

© Fritz Kübler GmbH, subject to errors and changes. 02/2015 www.kuebler.com 507
