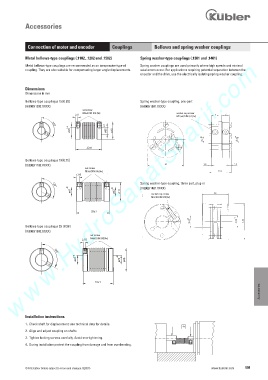

Accessoriessories
Acces

Connection of motor and encoder Couplings Bellows and spring washer couplings

Metal bellows-type couplings (.1102, .1202 und .1502) Spring washer-type couplings (.1301 und .1401)
www.HydroSanatSharif.com
Metal bellows-type couplings are recommended as an inexpensive type of Spring washer couplings are used primarily where high speeds and minimal
coupling. They are also suitable for compensating larger angle displacements. axial errors occur. For applications requiring potential separation between the
encoder and the drive, use the electrically isolating spring washer coupling.

Dimensions
Dimensions in mm
Bellows-type coupling ø 15 [0.59] Spring washer-type coupling, one-part
(8.0000.1202.XXXX) (8.0000.1301.XXXX)
set screw
Gewindestifte
M3x4 DIN 916 (4x) socket cap screw
2,0 M3x4 DIN 916 (4x)
M2.5x8 DIN 912 (2x)

22±1

Bellows-type coupling ø 19 [0.75]
(8.0000.1102.XXXX)
set screw
Gewindestifte
M3x4 DIN 916 (4x)
1,95
Spring washer-type coupling, three part, plug-in
8 8
120°
H H (8.0000.1401.XXXX)
ød1 ød2 ø19
socket cap screw
M3x10 DIN 912 (2x)
29±1

Bellows-type coupling ø 25 [0.98]
(8.0000.1502.XXXX)
set screw
M4x6 DIN 916 (4x)

Accessories

Installation instructions
1. Check shaft for displacement; see technical data for details.
2. Align and adjust coupling on shafts.
3. Tighten locking screws carefully. Avoid overtightening.
4. During installation protect the coupling from damage and from overbending.

© Fritz Kübler GmbH, subject to errors and changes. 02/2015 www.kuebler.com 509
