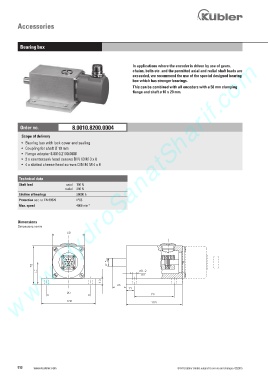

Page 514 - Keubler Motion Sensors

Accessories

Bearing box

www.HydroSanatSharif.com
In applications where the encoder is driven by use of gears,
chains, belts etc. and the permitted axial and radial shaft loads are
exceeded, we recommend the use of the special designed bearing
box which has stronger bearings.
This can be combined with all encoders with a 58 mm clamping
flange and shaft ø 10 x 20 mm.

Order no. 8.0010.8200.0004
Scope of delivery
• Bearing box with lock cover and sealing
• Coupling for shaft Ø 10 mm
• Flange adapter 8.0010.2100.0000
• 3 x countersunk head screws DIN 63 M 3 x 8
• 4 x slotted cheese head screws DIN 84 M 4 x 8

Technical data
Shaft load axial 150 N
radial 250 N
Lifetime of bearings 50000 h
Protection acc. to EN 60529 IP65
Max. speed 4000 min -1

Dimensions
Dimensions in mm
