Accessories

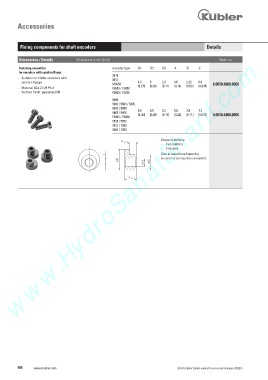

Fixing components for shaft encoders Details
www.HydroSanatSharif.com
Dimensions / Details Dimensions in mm [inch] Order no.
Fastening eccentrics encoder type D1 D2 D3 A B C
for encoders with synchro flange
3610
- Suitable for Kübler encoders with
3651
synchro flange 6,8 5 2,8 3,5 2,25 0,9
M3658 8.0010.4200.0000
- Material ACu Zn 39 Pb 3 F3653 / F3658 [0.27] [0.20] [0.11] [0.14] [0.09] [0.035]
- Surface finish: galvanised Ni F3663 / F3668
5000
5803 / 5804 / 5805
5853 / 5858
9,6 6,5 3,2 5,6 2,9 1,2
5863 / 5868
F5863 / F5868 [0.38] [0.26] [0.13] [0.22] [0.11] [0.047] 8.0010.4100.0000
5850 / 5852
7053 / 7058
7063 / 7068
Scope of delivery:
- 3 eccentrics
- 3 screws
(Use at least three fastening
eccentrics to mount the encoder)
