Accessories

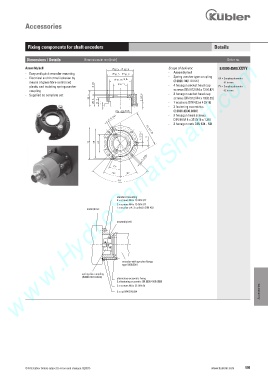

Fixing components for shaft encoders Details

www.HydroSanatSharif.com
Dimensions / Details Dimensions in mm [inch] Order no.
Assembly bell Scope of delivery: 8.0000.4500.XXYY
- Easy and quick encoder mounting - Assembly bell
- Spring washer type coupling
- Electrical and thermal isolation by XX = Coupling diameter
means of glass fibre reinforced (8.0000.1401.XXXX) d1 in mm
- 4 hexagon socket head cap
plastic and isolating spring washer YY = Coupling diameter
coupling screws DIN 912 M4 x 12 [0.47] d2 in mm
- 3 hexagon socket head cap
- Supplied as complete set
screws DIN 912 M4 x 10 [0.39]
- 7 washers DIN 433 ø 4 [0.16]
- 3 fastening eccentrics
(8.0000.4B00.0000)
- 3 hexagon head screws
DIN 84 M 4 x 35 [0.16 x 1.38]
- 3 hexagon nuts DIN 934 - M4

standard mounting
4 x screws M4 x 10 DIN 912
3 x screws M4 x 10 DIN 912
7 x washer ø 4, 3 x ø 8x0.5 DIN 433
motor/drive

assembly bell

encoder with synchro flange
type 5800/5810

spring disc coupling
(8.0000.1401.XXXX)
alternative eccentric fixing
3 x fastening eccentric (88.0000.4100.0000)
3 x screws M4 x 35 DIN 84
3 x nut M4 DIN 934 Accessories
