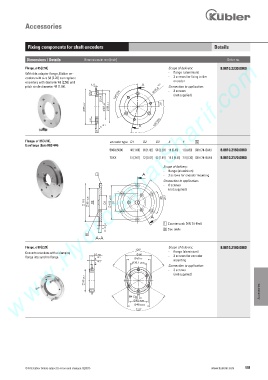

Page 505 - Keubler Motion Sensors

Accessories

Fixing components for shaft encoders Details

www.HydroSanatSharif.com
Dimensions / Details Dimensions in mm [inch] Order no.
Flange, ø 65 [2.56] Scope of delivery: 8.0010.2230.0000
With this adapter flange, Kübler en- - flange (aluminium)
- 3 screws for fixing to the
coders with size 58 [2.28] can replace
encoders with diameter 65 [2.56] and encoder
8 , 1 A +0.1
pitch circle diameter 48 [1.89]. Connection to application:
6,3 120°(3x) 36,5 - 3 screws
(not supplied)

3,4
65 ±0,1 48 ±0,1 59 -0.1 15°

M4 (3x)
+ 1 . 0 A 120°
3
6

Flange, ø 115 [4.53], encoder type D1 D2 D3 X Y B
Euroflange (Euro REO 444)
580X/5000 48 [1.89] 36 [1.42] 58 [2.28] 11 [0.43] 1 [0.039] DIN 74-BM3 8.0010.2160.0000
70XX 51 [2.01] 12 [0.47] 42 [1.65] 11.5 [0.45] 7.5 [0.30] DIN 74-BM4 8.0010.2170.0000

Scope of delivery:
- flange (aluminium)
- 3 screws for encoder mounting
Connection to application:
- 6 screws
(not supplied)

1 Countersunk DIN 74-Hm6
B See table

Flange, ø 58 [2.28] Scope of delivery: 8.0010.2180.0000
Converts encoders with a clamping - flange (aluminium)
flange into synchro flange. - 3 screws for encoder
mounting
Connection to application:
- 3 screws
(not supplied)
Accessories

© Fritz Kübler GmbH, subject to errors and changes. 02/2015 www.kuebler.com 503
