Accessories

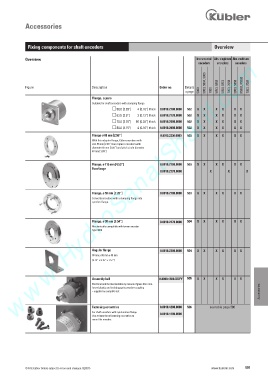

Fixing components for shaft encoders Overview

www.HydroSanatSharif.com
Overview Incremental Abs. singleturn Abs. multiturn
encoders encoders encoders
5803, 5804, 5805 F5863, F5868

Figure Description Order no. Details 5853, 5858 5850, 5852 7053, 7058 5863, 5868 7063, 7068
s.page 5000 7000
Flange, square
Suitable for shaft encoders with clamping flange
58.0 [2.28“] 4 [0.16“] thick 8.0010.2100.0000 502 X X X X X X
63.5 [2.5“] 3 [0.12“] thick 8.0010.2120.0000 502 X X X X X X
70.0 [2.76“] 10 [0.39“] thick 8.0010.2600.0000 502 X X X X X X
80.0 [3.15“] 4 [0.16“] thick 8.0010.2800.0000 502 X X X X X X
Flange ø 65 mm [2.56“] 8.0010.2230.0000 503 X X X X X X
With this adapter flange, Küber encoders with
size 58 mm [2.28“] can replace encoders with
diameter 65 mm [2.56“] and pitch circle diameter
48 mm [1.89“]

Flange, ø 115 mm [4.53“] 8.0010.2160.0000 503 X X X X X X
Euroflange
8.0010.2170.0000 X X X

Flange, ø 58 mm [2.28“] 8.0010.2180.0000 503 X X X X X X
Converts encoders with a clamping flange into
synchro flange.

Flange, ø 90 mm [3.54“] 8.0010.2270.0000 504 X X X X X X
Mechanically compatible with former encoder
Type 9000

Angular flange 8.0010.2300.0000 504 X X X X X X
80 mm x 80 mm x 40 mm
[3.15“ x 3.15“ x 1.57“]

Assembly bell 8.0000.4500.XXYY 505 X X X X X X
Electrical and thermal isolation by means of glass fibre rein-
Accessories
forced plastic and isolating spring washer coupling
– supplied as complete set

Fastening eccentrics 8.0010.4200.0000 506 see table page 506
For shaft encoders with synchronous flange. 8.0010.4100.0000
Use at least three fastening eccentrics to
mount the encoder.

© Fritz Kübler GmbH, subject to errors and changes. 02/2015 www.kuebler.com 501
