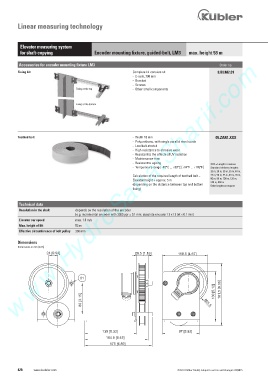

Page 430 - Keubler Motion Sensors

Linear measuring technology

Elevator measuring system
for shaft-copying Encoder mounting fixture, guided-belt, LM3 max. height 53 m
www.HydroSanatSharif.com
Accessories for encoder mounting fixture LM3 Order no.
Fixing kit Complete kit consists of: 8.BLM2.01
- C-rails, 700 mm
- Bracket
- Screws
Fixing at the top - Other small components

Fixing at the bottom

Toothed belt - Width 10 mm 05.ZAR1.XXX
- Polyurethane, with single parallel steel cords
- Low belt-stretch
- High resistance to abrasive wear
- Resistant to the effects of UV radiation
- Maintenance-free
- Resistant to ageing XXX = Length in metres
- Temperature range -10°C ... +80°C [+14°F ... +176°F] Standard delivery lengths:
20 m, 25 m, 30 m, 35 m, 40 m,
Calculation of the required length of toothed belt = 45 m, 50 m, 55 m, 60 m, 70 m,
80 m, 90 m, 100 m, 120 m,
Elevator height + approx. 5 m 250 m, 300 m
(depending on the distance between top and bottom
Other lengths on request
fixing)

Technical data
Resolution in the shaft depends on the resolution of the encoder
(e.g. incremental encoder with 3000 ppr = 0.1 mm; absolute encoder 12 x 12 bit < 0.1 mm)
Elevator car speed max. 1.6 m/s
Max. height of lift 53 m
Effective circumference of belt pulley 300 mm

Dimensions
Dimensions in mm [inch]
24 [0.94] 29.5 [1.16] 118.5 [4.67]

01
130 [5.12] 161.5 [6.36]
80 [3.15] R51.5

135 [5.32] 97 [3.82]
164.5 [6.48]
175 [6.89]

428 www.kuebler.com © Fritz Kübler GmbH, subject to errors and changes. 02/2015
