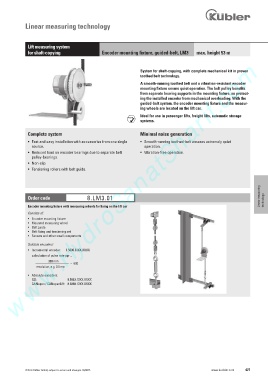

Linear measuring technology

Lift measuring system
for shaft-copying Encoder mounting fixture, guided-belt, LM3 max. height 53 m
www.HydroSanatSharif.com

System for shaft-copying, with complete mechanical kit in proven
toothed belt technology.

A smooth-running toothed belt and a vibration-resistant encoder
mounting fixture ensure quiet operation. The belt pulley benefits
from separate bearing supports in the mounting fixture, so protect-
ing the installed encoder from mechanical overloading. With the
guided-belt system, the encoder mounting fixture and the measur-
ing wheels are located on the lift car.
Ideal for use in passenger lifts, freight lifts, automatic storage
RoHS
systems.
Complete system Minimal noise generation

• Fast and easy installation with accessories from one single • Smooth-running toothed-belt ensures extremely quiet
source. operation.
• Reduced load on encoder bearings due to separate belt • Vibration-free operation.
pulley-bearings.
• Non-slip.
• Tensioning rollers with belt guide.

Linear measuring

Order code 8.LM3.01 technology

Encoder mounting fixture with measuring wheels for fixing on the lift car
Consists of:
• Encoder mounting fixture
• Mounted measuring wheel
• Belt guide
• Belt fixing and tensioning set
• Screws and other small components
Suitable encoders:
• Incremental encoder: 8.5000.83XX.XXXX
calculation of pulse rate ppr =
300 mm
= 600
resolution, e.g. 0.5 mm
• Absolute encoders:
SSI: 8.5863.12XX.XXXX
CANopen / CANopenLift: 8.5868.12XX.XXXX
