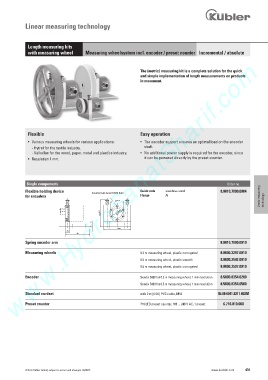

Linear measuring technology

Length measuring kits
with measuring wheel Measuring wheelsystem incl. encoder / preset counter Incremental / absolute
www.HydroSanatSharif.com

The (metric) measuring kit is a complete solution for the quick
and simple implementation of length measurements on products
in movement.

Flexible Easy operation

• Various measuring wheels for various applications: • The encoder support ensures an optimal load on the encoder
- Hytrel for the textile industry. shaft.
- Vulkollan for the wood, paper, metal and plastics industry. • No additional power supply is required for the encoder, since
• Resolution 1 mm. it can be powered directly by the preset counter.

Single components Order no.
Linear measuring
Flexible holding device Guide rods stainless steel 8.0010.7000.0004
Countersunk bore DIN74 Km3
Flange
Al
for encoders technology

Spring encoder arm 8.0010.7000.0010

Measuring wheels 0.2 m measuring wheel, plastic corrugated 8.0000.3297.0010
0.5 m measuring wheel, plastic smooth 8.0000.3547.0010
0.5 m measuring wheel, plastic corrugated 8.0000.3597.0010

Encoder Sendix 5000 for 0.2 m measuring wheel, 1 mm resolution 8.5000.8354.0200
Sendix 5000 for 0.5 m measuring wheel, 1 mm resolution 8.5000.8354.0500

Standard cordset with 2 m [6.56‘] PVC cable, M12 05.00.6041.8211.002M

Preset counter 716 LED preset counter, 100 ... 240 V AC, 1 preset 6.716.010.000

© Fritz Kübler GmbH, subject to errors and changes. 02/2015 www.kuebler.com 431
