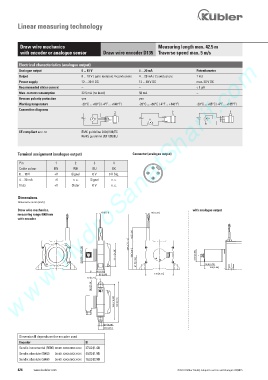

Linear measuring technology

Draw wire mechanics Measuring length max. 42.5 m
with encoder or analogue sensor Draw wire encoder D135 Traverse speed max. 5 m/s
www.HydroSanatSharif.com
Electrical characteristics (analogue output)
Analogue output 0 ... 10 V 4 ... 20 mA Potentiometer
Output 0 ... 10 V / galv. isolated, 4 conductors 4 ... 20 mA / 2 conductors 1 k1
Power supply 12 ... 30 V DC 12 ... 30 V DC max. 30 V DC
Recommended slider current – – < 1 µA
Max. current consumption 22.5 mA (no load) 50 mA –
Reverse polarity protection yes yes –
Working temperature -20°C ... +60°C [-4°F ... +140°F] -20°C ... +60°C [-4°F ... +140°F] -20°C ... +85°C [-4°F ... +185°F]
Connection diagrams
V+ V+
V+ + out V+ + V+ + V V+
- V GNDout - A - out
0 V out 0 V

CE compliant acc. to EMC guideline 2004/108/EC
RoHS guideline 2011/65/EU

Terminal assignment (analogue output) Connector (analogue output)

Pin 1 2 3 4
Cable colour BN WH BU BK 2
0 ... 10 V +V Signal 0 V 0 V Sig. 3 1
4
4 ... 20 mA +V n. c. Signal n. c.
1 k1 +V Slider 0 V n. c.

Dimensions
Dimensions in mm [inch]
Draw wire mechanics, with analogue output
> @
measuring range 8000 mm
with encoder

> @ [2.36] 60

18,5 [0.73]
100 [3.94]
% > @
> @

Dimension B depends on the encoder used
Encoder B
Sendix incremental (5000) D8.4D1.XXXX.00XX.XXXX 37.00 [1.46]
Sendix absolute (5863) D8.4D1.XXXX.63XX.XXXX 49.50 [1.95]
Sendix absolute (5868) D8.4D1.XXXX.68XX.XXXX 76.00 [2.99]

424 www.kuebler.com © Fritz Kübler GmbH, subject to errors and changes. 02/2015
