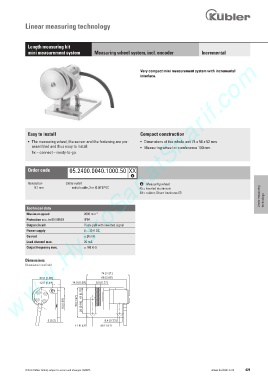

Page 431 - Keubler Motion Sensors

Linear measuring technology

Length measuring kit
mini measurement system Measuring wheel system, incl. encoder Incremental
www.HydroSanatSharif.com

Very compact mini measurement system with incremental
interface.

Easy to install Compact construction

• The measuring wheel, the sensor and the fastening are pre- • Dimensions of the whole unit 74 x 50 x 52 mm.
assembled and thus easy to install: • Measuring wheel circumference 100 mm.
fix – connect – ready-to-go.

Order code 05.2400.0040.1000.50 XX
a
Resolution Cable outlet a Measuring wheel
Linear measuring technology
0.1 mm radial cable, 2 m [6.56‘] PVC 45 = knurled aluminium
49 = rubber, Shure hardness 60

Technical data
Maximum speed 2000 min -1
Protection acc. to EN 60529 IP64
Output circuit Push-pull with inverted signal
Power supply 8 ... 30 V DC
Current ) 20 mA
Load channel max. 20 mA
Output frequency max. * 100 kHz

Dimensions
Dimensions in mm [inch]
7 9 . 2 [ 4 ] 1
4 8 . 1 [ 8 , 7 ] 8 6 6 . 2 [ 8 ] 8
1 4 . 0 [ 5 , 2 ] 9 1 5 . 0 [ 9 , 4 ] 9 3 . 0 [ 5 , 9 ] 7
19 [0.75]

15 [0.59] 50 [1.97] 24 [0.94]

] 2 . 0 [ 5 3 . 0 [ 4 , 8 ] 3
1 4 . 0 [ 1 ] 3 4 8 . 1 [ 6 ] 1
