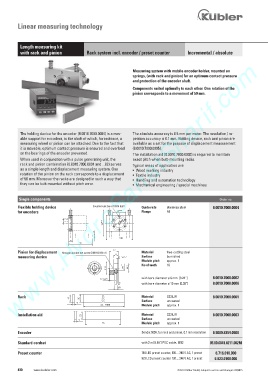

Linear measuring technology

Length measuring kit
with rack and pinion Rack system incl. encoder / preset counter Incremental / absolute
www.HydroSanatSharif.com

Measuring system with mobile encoder holder, mounted on
springs, (with rack and pinion) for an optimum contact pressure
and protection of the encoder shaft.
Components suited optimally to each other. One rotation of the
pinion corresponds to a movement of 50 mm.

The holding device for the encoder (8.0010.7000.0004) is a mov- The absolute accuracy is 0.5 mm per meter. The resolution / re-
able support for encoders, to the shaft of which, for instance, a petition accuracy is 0.1 mm. Holding device, rack and pinion are
measuring wheel or pinion can be attached. Due to the fact that available as a set for the purpose of displacement measurement
it is movable, optimum contact pressure is ensured and overload (8.0010.7000.0005).
on the bearings of the encoder prevented. The installation aid (8.0010.7000.0003) is required to maintain
When used in conjunction with a pulse generating unit, the exact pitch when butt-mounting racks.
rack and pinion combination (8.0010.7000.0001 and ...02) serves Typical areas of application are:
as a simple length and displacement measuring system. One • Wood working industry
rotation of the pinion on the rack corresponds to a displacement • Textile industry
of 50 mm. Moreover the racks are designed in such a way that • Handling and automation technology
they can be butt-mounted without pitch error. • Mechanical engineering / special machines

Single components Order no.
Flexible holding device Countersunk bore DIN74 Km3 Guide rods stainless steel 8.0010.7000.0004
for encoders Flange Al

Pinion for displacement Hexagon socket set screw DIN913 M3 x 6 Material free-cutting steel

measuring device Surface burnished
Module pitch approx. 1
No of teeth 16

with bore diameter ø 6 mm [0.24“] 8.0010.7000.0002
with bore diameter ø 10 mm [0.39“] 8.0010.7000.0006

Rack Material S235JR 8.0010.7000.0001
Surface uncoated
Module pitch approx. 1

Installation aid Material S235JR 8.0010.7000.0003
Surface uncoated
Module pitch approx. 1

Encoder Sendix 5000, for rack and pinion, 0.1 mm resolution 8.5000.8354.0500
Standard cordset with 2 m [6.56‘] PVC cable, M12 05.00.6041.8211.002M

Preset counter 716 LED preset counter, 100 ... 240 V AC, 1 preset 6.716.010.000
923 LCD preset counter 100 ... 240 V AC, 1 preset 6.923.0100.000
