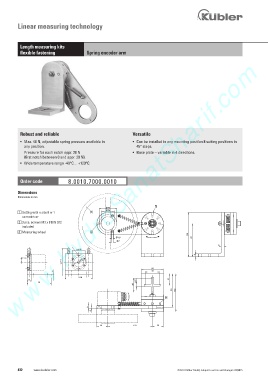

Page 434 - Keubler Motion Sensors

Linear measuring technology

Length measuring kits
flexible fastening Spring encoder arm
www.HydroSanatSharif.com

Robust and reliable Versatile

• Max. 40 N, adjustable spring pressure available in • Can be installed in any mounting position 8 setting positions in
any position. 45° steps.
Pressure for each notch appr. 20 N • Base plate – variable in 4 directions.
(first notch between 0 and appr. 20 N).
• Wide temperature range -40°C ... +120°C.

Order code 8.0010.7000.0010

Dimensions
Dimensions in mm

1
48
36
1 Setting with a size 0 or 1 3
screwdriver
2 3 pcs. screws M3 x 8 DIN 912
included
3 Measuring wheel 2
120
3,8 90
7
8
8

60
38
31
6,5
38
90 102
E

8
4

30 120 30
