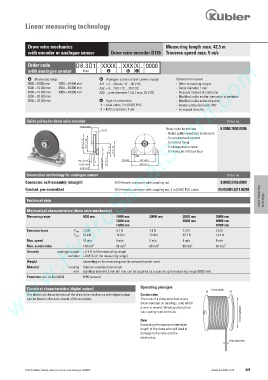

P. 425
Linear measuring technology
Draw wire mechanics Measuring length max. 42.5 m
with encoder or analogue sensor Draw wire encoder D135 Traverse speed max. 5 m/s
www.HydroSanatSharif.com
Order code D8.3D1 XXXX. . XXX X . 0000
with analogue sensor Type a b c
a Measuring range b Analogue sensor output / power supply Optional on request
0800 = 8 000 mm 3000 = 30 000 mm A11 = 4 ... 20 mA / 12 ... 30 V DC - Other measuring ranges
1000 = 10 000 mm 3500 = 35 000 mm A22 = 0 ... 10 V / 12 ... 30 V DC - Cable diameter 1 mm
1500 = 15 000 mm 4000 = 40 000 mm A33 = potentiometer 1 k1 / max. 30 V DC - Ring eye instead of cable clip
2000 = 20 000 mm - Modified cable and/or connector orientation
2500 = 25 000 mm c Type of connection - Modified cable outlet direction
1 = axial cable, 2 m [6.56‘] PVC - Sensor protection level IP67
3 = M12 connector, 4-pin - Increased linearity
Guide pulley for draw wire encoder Order no.
Order code for the set: 8.0000.7000.0045
- Guide pulley (anodised aluminium)
- 2 x countersunk screws
for lateral fixing
- 2 x hexagonal screws
for fixing on a flat surface
Connection technology for analogue sensor Order no.
Connector, self-assembly (straight) M12 female connector with coupling nut 8.0000.5116.0000
Linear measuring
Cordset, pre-assembled M12 female connector with coupling nut, 2 m [6.56‘] PVC cable 05.00.6081.2211.002M
Technical data technology
Mechanical characteristics (draw wire mechanics)
Measuring range 8000 mm 10000 mm 20000 mm 25000 mm 35000 mm
12000 mm 30000 mm 40000 mm
15000 mm 42500 mm
Extension force F min 7.2 N 8.7 N 7.0 N 7.3 N 7.0 N
F max 16.0 N 16.9 N 12.4 N 15.7 N 14.1 N
Max. speed 10 m/s 6 m/s 5 m/s 5 m/s 5 m/s
Max. acceleration 140 m/s 2 80 m/s 2 60 m/s 2 60 m/s 2 60 m/s 2
Linearity analogue output ± 0.1 % (of the measuring range)
encoder ± 0.05 % (of the measuring range)
Weight depending on the measuring and the sensor/encoder used
Material housing titanium-anodised aluminium
wire stainless steel ø 0.5 mm (ø 1 mm can be supplied as a special up to measuring range 20000 mm)
Protection acc. to EN 60529 IP65 (sensor)
Electrical characteristics (digital output) Operating principle Drum width
The electrical characteristics of the draw wire mechanics with digital output Construction
can be found in the data sheets of the encoders. The core of a draw wire device is a
drum mounted on bearings, onto which
a wire is wound. Winding takes place
via a spring-loaded device. Drum diameter
Note
Exceeding the maximum extension
length of the draw wire will lead to
damage to the wire and the
mechanics.
Wire diameter
© Fritz Kübler GmbH, subject to errors and changes. 02/2015 www.kuebler.com 423
