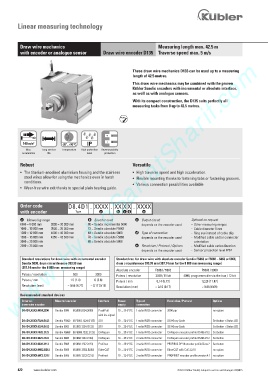

Linear measuring technology

Draw wire mechanics Measuring length max. 42.5 m
with encoder or analogue sensor Draw wire encoder D135 Traverse speed max. 5 m/s
www.HydroSanatSharif.com

These draw wire mechanics D135 can be used up to a measuring
length of 42.5 metres.

This draw wire mechanics may be combined with the proven
Kübler Sendix encoders with incremental or absolute interface,
as well as with analogue sensors.

With its compact construction, the D135 suits perfectly all
measuring tasks from 8 up to 42.5 metres.

RoHS

140 m/s 2 -20°... +90°C IP
Max. Long service Temperature High protection Reverse polarity
acceleration life level protection

Robust Versatile
• The titanium-anodised aluminium housing and the stainless • High traverse speed and high acceleration.
steel wires allow for using the mechanics even in harsh • Flexible mounting thanks to fastening tabs or fastening grooves.
conditions.
• Various connection possibilities available.
• Wear-free wire exit thanks to special plain bearing guide.

Order code D8.4D1 XXXX. . XX X X XXXX.
with encoder Type a b c d e
a Measuring range b Encoder used c Output circuit Optional on request
0800 = 8 000 mm 3000 = 30 000 mm 00 = Sendix incremental 5000 depends on the encoder used - Other measuring ranges
1000 = 10 000 mm 3500 = 35 000 mm F3 = Sendix absolute F5863 - Cable diameter 1 mm
1200 = 12 000 mm 4000 = 40 000 mm 63 = Sendix absolute 5863 d Type of connection - Ring eye instead of cable clip
1500 = 15 000 mm 4250 = 42 500 mm F8 = Sendix absolute F5868 depends on the encoder used - Modified cable and/or connector
2000 = 20 000 mm 68 = Sendix absolute 5868 orientation
2500 = 25 000 mm e Resolution / Protocol / Options - Modified cable outlet direction
depends on the encoder used - Sensor protection level IP67
Standard resolutions for draw wire with incremental encoder Standard res. for draw wire with absolute encoder Sendix F5863 or F5868 – 5863 or 5868,
Sendix 5000, drum circumference 333.33 mm drum circumference 333.33 mm (357.14 mm for the 8 000 mm measuring range)
(357.14 mm for the 8 000 mm measuring range)
Absolute encoder F5863 / 5863 F5868 / 5868
Pulses / revolution 500 2000
Pulses / revolution 2048 / 11 bit 4096, programmable via the bus / 12 bit
Pulses / mm 1.5 (1.4) 6 (5.6) Pulses / mm 6.14 (5.73) 12.28 (11.47)
Resolution (mm) ~ 0.66 (0.71) ~ 0.17 (0.18) Resolution (mm) ~ 0.16 (0.17) ~ 0.08 (0.09)
Recommended standard devices
Order no. Mounted encoder Interface Power Type of Resolution / Protocol Options
draw wire encoder supply connection
D8.4D1.XXXX.0054.2000 Sendix 5000 (8.5000.8354.2000) PushPull 10 ... 30 V DC 1 radial M12 connector 2000 ppr no option
with inv. signal
D8.4D1.XXXX.F324.G123 Sendix F5863 (8.F5863.1224.G123) SSI 10 ... 30 V DC 1 radial M23 connector SSI-Gray-Code Set button + Status LED
D8.4D1.XXXX.6324.G123 Sendix 5863 (8.5863.1224.G123) SSI 10 ... 30 V DC 1 radial M23 connector SSI-Gray-Code Set button + Status LED
D8.4D1.XXXX.F82E.2123 Sendix F5868 (8.F5868.122E.2123) CANopen 10 ... 30 V DC 1 radial M12 connector CANopen encoder profile DS406 V3.2 Set button
D8.4D1.XXXX.6822.2123 Sendix 5868 (8.5868.1222.2123) CANopen 10 ... 30 V DC 2 radial M12 connector CANopen encoder profile DS406 V3.2 Set button
D8.4D1.XXXX.6832.3113 Sendix 5868 (8.5868.1232.3113) Profibus 10 ... 30 V DC 3 radial M12 connector PROFIBUS DP V0 encoder profile Class 2 Set button
D8.4D1.XXXX.68B2.B212 Sendix 5868 (8.5868.12B2.B212) EtherCAT 10 ... 30 V DC 3 radial M12 connector EtherCAT with CoE 3.2.10 no option
D8.4D1.XXXX.68C2.C212 Sendix 5868 (8.5868.12C2.C212) Profinet 10 ... 30 V DC 3 radial M12 connector PROFINET encoder profile version 4.1 no option

422 www.kuebler.com © Fritz Kübler GmbH, subject to errors and changes. 02/2015
