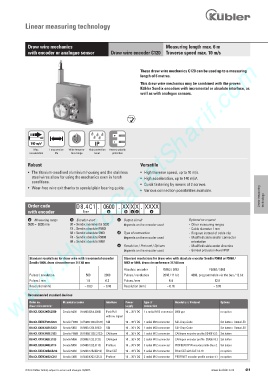

Linear measuring technology

Draw wire mechanics Measuring length max. 6 m
with encoder or analogue sensor Draw wire encoder C120 Traverse speed max. 10 m/s
www.HydroSanatSharif.com

These draw wire mechanics C120 can be used up to a measuring
length of 6 metres.

This draw wire mechanics may be combined with the proven
Kübler Sendix encoders with incremental or absolute interface, as
well as with analogue sensors.

RoHS

140 m/s 2 IP
Max. Long service Wide tempera- High protection Reverse polarity
acceleration life ture range level protection

Robust Versatile
• The titanium-anodised aluminium housing and the stainless • High traverse speed, up to 10 m/s.
steel wires allow for using the mechanics even in harsh • High acceleration, up to 140 m/s².
conditions.
• Quick fastening by means of 2 screws.
Linear measuring technology
• Wear-free wire exit thanks to special plain bearing guide.
• Various connection possibilities available.
Order code D8.4C1 . 0600 . XX X X XXXX.
with encoder Type a b c d e
a Measuring range b Encoder used c Output circuit Optional on request
0600 = 6000 mm 00 = Sendix incremental 5000 depends on the encoder used - Other measuring ranges
F3 = Sendix absolute F5863 - Cable diameter 1 mm
63 = Sendix absolute 5863 d Type of connection - Ring eye instead of cable clip
F8 = Sendix absolute F5868 depends on the encoder used - Modified cable and/or connector
68 = Sendix absolute 5868 orientation
e Resolution / Protocol / Options - Modified cable outlet direction
depends on the encoder used - Sensor protection level IP67
Standard resolutions for draw wire with incremental encoder Standard resolutions for draw wire with absolute encoder Sendix F5863 or F5868 /
Sendix 5000, drum circumference 317.68 mm 5863 or 5868, drum circumference 317.68 mm
Absolute encoder F5863 / 5863 F5868 / 5868
Pulses / revolution 500 2000 Pulses / revolution 2048 / 11 bit 4096, programmable via the bus / 12 bit
Pulses / mm 1.6 6.3 Pulses / mm 6.4 12.9
Resolution (mm) ~ 0.63 ~ 0.16 Resolution (mm) ~ 0.16 ~ 0.08
Recommended standard devices
Order no. Mounted encoder Interface Power Type of Resolution / Protocol Options
draw wire encoder supply connection
D8.4C1.XXXX.0054.2000 Sendix 5000 (8.5000.8354.2000) PushPull 10 ... 30 V DC 1 x radial M12 connector 2000 ppr no option
with inv. signal
D8.4C1.XXXX.F324.G123 Sendix F5863 (8.F5863.1224.G123) SSI 10 ... 30 V DC 1 radial M23 connector SSI-Gray-Code Set button + Status LED
D8.4C1.XXXX.6324.G123 Sendix 5863 (8.5863.1224.G123) SSI 10 ... 30 V DC 1 radial M23 connector SSI-Gray-Code Set button + Status LED
D8.4C1.XXXX.F82E.2123 Sendix F5868 (8.F5868.122E.2123) CANopen 10 ... 30 V DC 1 radial M12 connector CANopen encoder profile DS406 V3.2 Set button
D8.4C1.XXXX.6822.2123 Sendix 5868 (8.5868.1222.2123) CANopen 10 ... 30 V DC 2 radial M12 connector CANopen encoder profile DS406 V3.2 Set button
D8.4C1.XXXX.6832.3113 Sendix 5868 (8.5868.1232.3113) Profibus 10 ... 30 V DC 3 radial M12 connector PROFIBUS DP V0 encoder profile Class 2 Set button
D8.4C1.XXXX.68B2.B212 Sendix 5868 (8.5868.12B2.B212) EtherCAT 10 ... 30 V DC 3 radial M12 connector EtherCAT with CoE 3.2.10 no option
D8.4C1.XXXX.68C2.C212 Sendix 5868 (8.5868.12C2.C212) Profinet 10 ... 30 V DC 3 radial M12 connector PROFINET encoder profile version 4.1 no option

© Fritz Kübler GmbH, subject to errors and changes. 02/2015 www.kuebler.com 419
