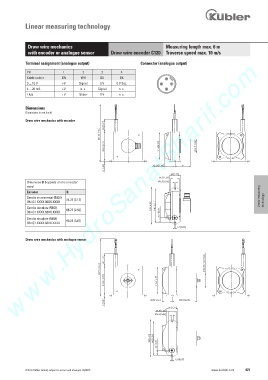

Linear measuring technology

Draw wire mechanics Measuring length max. 6 m
with encoder or analogue sensor Draw wire encoder C120 Traverse speed max. 10 m/s
www.HydroSanatSharif.com
Terminal assignment (analogue output) Connector (analogue output)

Pin 1 2 3 4
Cable colour BN WH BU BK 2
0 ... 10 V +V Signal 0 V 0 V Sig. 3 1
4 ... 20 mA +V n. c. Signal n. c. 4
1 k1 +V Slider 0 V n. c.

Dimensions
Dimensions in mm [inch]
Draw wire mechanics with encoder

%
% %

Dimension B depends on the encoder

used
Encoder B
Sendix incremental (5000) 54.25 [2.12] Linear measuring
D8.4C1.XXXX.00XX.XXXX technology
Sendix absolute (5863)
D8.4C1.XXXX.63XX.XXXX 66.75 [2.63]
Sendix absolute (5868) 93.25 [3.67]
D8.4C1.XXXX.68XX.XXXX

Draw wire mechanics with analogue sensor

© Fritz Kübler GmbH, subject to errors and changes. 02/2015 www.kuebler.com 421
