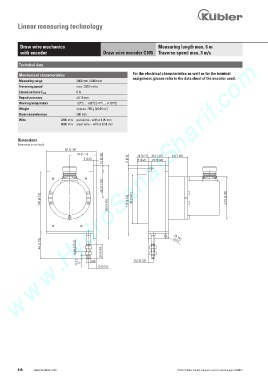

Page 420 - Keubler Motion Sensors

Linear measuring technology

Draw wire mechanics Measuring length max. 6 m
with encoder Draw wire encoder C105 Traverse speed max. 3 m/s
www.HydroSanatSharif.com
Technical data
For the electrical characteristics as well as for the terminal
Mechanical characteristics
assignment, please refer to the data sheet of the encoder used.
Measuring range 2800 mm / 6000 mm
Traversing speed max. 3000 mm/s
Extension force F min 8 N
Repeat accuracy ±0.15 mm
Working temperature -20°C ... +80°C [-4°F ... +176°F]
Weight approx. 700 g [24.69 oz]
Drum circumference 200 mm
Wire 2800 mm paraleine– with ø 1.05 mm
6000 mm steel wire – with ø 0.54 mm

Dimensions
Dimensions in mm [inch]
85 [3.35]
45 [1.77] 18 [0.71] 35 [1.38] 33 [1.28]
5 [0.2] 10 [0.39] 5 [0.2] 5 [0.2] 25 [0.98]

45,5 [1.79]

[4.13] [4.53] 84 [3.31] [2.83]
105 125 [4.92] 115 72

[1.72] 5 [0.2] 0,18
4,5
44
max. 25 [0.98]

0,2 5 M 6 8,5 [0.33]
13 [0.51]

418 www.kuebler.com © Fritz Kübler GmbH, subject to errors and changes. 02/2015
