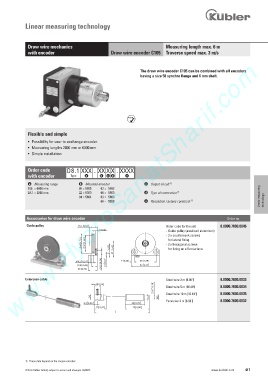

Linear measuring technology

Draw wire mechanics Measuring length max. 6 m
with encoder Draw wire encoder C105 Traverse speed max. 3 m/s
www.HydroSanatSharif.com

The draw wire encoder C105 can be combined with all encoders
having a size 58 synchro flange and 6 mm shaft.

RoHS

Flexible and simple

• Possibility for user to exchange encoder.
• Measuring lengths 2800 mm or 6000 mm.
• Simple installation.

Order code D8.1 XXX . XX XX . XXXX
with encoder Type a b c d e

a Measuring range b Mounted encoder c Output circuit 1)
106 = 6000 mm 05 = 5805 62 = 5862
2A1 = 2800 mm 2Z = 5000 60 = 5860 d Type of connection 1)
04 = 5804 63 = 5863 Linear measuring
68 = 5868 e Resolution / pulses / protocol 1) technology

Accessories for draw wire encoder Order no.
Guide pulley Order code for the set: 8.0000.7000.0045
- Guide pulley (anodised aluminium)
- 2 x countersunk screws
for lateral fixing
- 2 x hexagonal screws
for fixing on a flat surface

Extension cable Steel wire 2 m [6.56‘] 8.0000.7000.0033
PD[ PD[ 8.0000.7000.0034
Steel wire 5 m [16.40‘]
Steel wire 10 m [32.81‘] 8.0000.7000.0035

0 0
Paraleine 2 m [6.56‘] 8.0000.7000.0032

/ /

1) These data depend on the chosen encoder.
