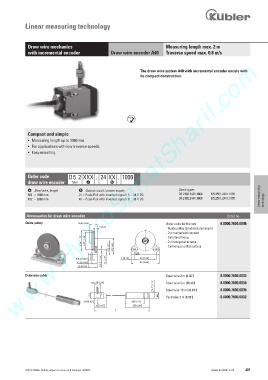

Page 409 - Keubler Motion Sensors

Linear measuring technology

Draw wire mechanics Measuring length max. 2 m
with incremental encoder Draw wire encoder A40 Traverse speed max. 0.8 m/s
www.HydroSanatSharif.com

The draw wire system A40 with incremental encoder excels with
its compact construction.

RoHS

Compact and simple
• Measuring length up to 2000 mm.
• For applications with low traverse speeds.
• Easy mounting.

Order code D5.2 XXX . 24 XX . 1000
draw wire encoder Type a b
Linear measuring
a Steel wire, length b Output circuit / power supply Stock types
501 = 1000 mm 21 = Push-Pull with inverted signal / 5 ... 24 V DC D5.2102.2421.1000 D5.2501.2421.1000
102 = 2000 mm 41 = Push-Pull with inverted signal / 8 ... 30 V DC D5.2102.2441.1000 D5.2501.2441.1000 technology

Accessories for draw wire encoder Order no.
Guide pulley Order code for the set: 8.0000.7000.0045

- Guide pulley (anodised aluminium)
- 2 x countersunk screws
for lateral fixing
- 2 x hexagonal screws
for fixing on a flat surface

Extension cable Steel wire 2 m [6.56‘] 8.0000.7000.0033

PD[ PD[ Steel wire 5 m [16.40‘] 8.0000.7000.0034
Steel wire 10 m [32.81‘] 8.0000.7000.0035

0 0
Paraleine 2 m [6.56‘] 8.0000.7000.0032

/ /

© Fritz Kübler GmbH, subject to errors and changes. 02/2015 www.kuebler.com 407
