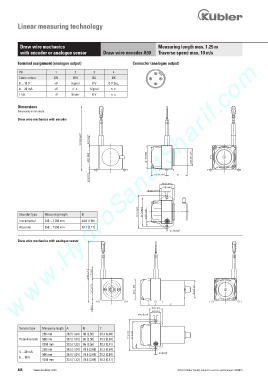

Linear measuring technology

Draw wire mechanics Measuring length max. 1.25 m
with encoder or analogue sensor Draw wire encoder A50 Traverse speed max. 10 m/s
www.HydroSanatSharif.com
Terminal assignment (analogue output) Connector (analogue output)

Pin 1 2 3 4
2
Cable colour BN WH BU BK 3 1
0 ... 10 V +V Signal 0 V 0 V Sig. 4
4 ... 20 mA +V n. c. Signal n. c.
1 k1 +V Slider 0 V n. c.

Dimensions
Dimensions in mm [inch]

Draw wire mechanics with encoder

%

% % %

Encoder type Measuring length B

Incremental 250 ... 1250 mm 43.0 [1.69]

Absolute 250 ... 1250 mm 53.7 [2.11]

Draw wire mechanics with analogue sensor

$ %

Sensor type Measuring length A B C
250 mm 26.5 [1.04] 65 [2.56] 21.3 [0.84]
Potentiometer 500 mm 26.5 [1.04] 65 [2.56] 21.3 [0.84]
1250 mm 33.5 [1.32] 65 [2.56] 10.3 [0.41]
&
250 mm 26.5 [1.04] 78.5 [3.09] 21.3 [0.84]
4 ... 20 mA
500 mm 26.5 [1.04] 78.5 [3.09] 21.3 [0.84]
0 ... 10 V
1250 mm 33.5 [1.32] 78.5 [3.09] 10.3 [0.41]
406 www.kuebler.com © Fritz Kübler GmbH, subject to errors and changes. 02/2015
