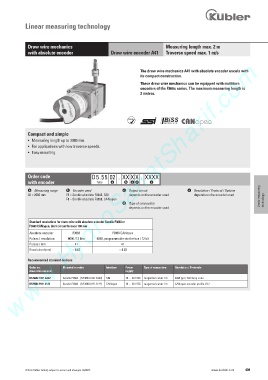

Page 411 - Keubler Motion Sensors

Linear measuring technology

Draw wire mechanics Measuring length max. 2 m
with absolute encoder Draw wire encoder A41 Traverse speed max. 1 m/s
www.HydroSanatSharif.com

The draw wire mechanics A41 with absolute encoder excels with
its compact construction.

These draw wire mechanics can be equipped with multiturn
encoders of the F366x series. The maximum measuring length is
2 metres.

RoHS

Compact and simple
• Measuring length up to 2000 mm.
• For applications with low traverse speeds.
• Easy mounting.

Order code D5.55 02 . XX X X XXXX.
with encoder Type a b c d e
a Measuring range b Encoder used c Output circuit e Resolution / Protocol / Options
02 = 2000 mm F3 = Sendix absolute F3663, SSI depends on the encoder used depends on the encoder used Linear measuring
F8 = Sendix absolute F3668, CANopen technology
d Type of connection
depends on the encoder used

Standard resolutions for draw wire with absolute encoder Sendix F3663 or
F3668 CANopen, drum circumference 100 mm
Absolute encoder F3663 F3668 CANopen
Pulses / revolution 4096 / 12 bits 4096, programmable via the bus / 12 bit
Pulses / mm 41 41
Resolution (mm) ~ 0.02 ~ 0.02

Recommended standard devices
Order no. Mounted encoder Interface Power Type of connection Résolution / Protocole
draw wire encoder supply
D5.5502.F321.G222 Sendix F3663 (8.F3663.4121.G222) SSI 10 ... 30 V DC tangential cable 1 m 4096 ppr / SSI Gray code
D5.5502.F821.2122 Sendix F3668 (8.F3668.4121.2122) CANopen 10 ... 30 V DC tangential cable 1 m CANopen encoder profile V3.2
