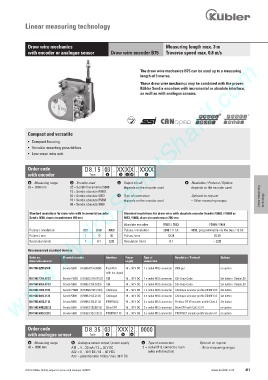

Linear measuring technology

Draw wire mechanics Measuring length max. 3 m
with encoder or analogue sensor Draw wire encoder B75 Traverse speed max. 0.8 m/s
www.HydroSanatSharif.com

The draw wire mechanics B75 can be used up to a measuring
length of 3 metres.

These draw wire mechanics may be combined with the proven
Kübler Sendix encoders with incremental or absolute interface,
as well as with analogue sensors.

RoHS

Compact and versatile

• Compact housing.
• Variable mounting possibilities.
• Low-wear wire exit.

Order code D8.15 03 . XX X X XXXX.
with encoder Type a b c d e
a Measuring range b Encoder used c Output circuit e Resolution / Protocol / Options
03 = 3000 mm 2Z = Sendix incremental 5000 depends on the encoder used depends on the encoder used
F3 = Sendix absolute F5863
63 = Sendix absolute 5863 d Type of connection Optional on request Linear measuring
F8 = Sendix absolute F5868 depends on the encoder used - Other measuring ranges technology
68 = Sendix absolute 5868

Standard resolutions for draw wire with incremental encoder Standard resolutions for draw wire with absolute encoder Sendix F5863 / F5868 or
Sendix 5000, drum circumference 200 mm 5863 / 5868, drum circumference 200 mm
Absolute encoder F5863 / 5863 F5868 / 5868
Pulses / revolution 200 2000 4000 Pulses / revolution 2048 / 11 bit 4096, programmable via the bus / 12 bit
Pulses / mm 1 10 20 Pulses / mm 10.24 20.48
Resolution (mm) 1 0.1 0.05 Resolution (mm) -0.1 ~ 0.05

Recommended standard devices
Order no. Mounted encoder Interface Power Type of Resolution / Protocol Options
draw wire encoder supply connection
D8.1503.2Z54.2000 Sendix 5000 (8.5000.B154.2000) PushPull 10 ... 30 V DC 1 x radial M12 connector 2000 ppr no option
with inv. signal
D8.1503.F324.G123 Sendix F5863 (8.F5863.2124.G123) SSI 10 ... 30 V DC 1 x radial M23 connector SSI-Gray-Code Set button + Status LED
D8.1503.6324.G123 Sendix 5863 (8.5863.2124.G123) SSI 10 ... 30 V DC 1 x radial M23 connector SSI-Gray-Code Set button + Status LED
D8.1503.F82E.2123 Sendix F5868 (8.F5868.212E.2123) CANopen 10 ... 30 V DC 1 x radial M12 connector CANopen encoder profile DS406 V3.2 Set button
D8.1503.6822.2123 Sendix 5868 (8.5868.2122.2123) CANopen 10 ... 30 V DC 2 x radial M12 connector CANopen encoder profile DS406 V3.2 Set button
D8.1503.6832.3113 Sendix 5868 (8.5868.2132.3113) PROFIBUS 10 ... 30 V DC 3 x radial M12 connector Profibus-DP V0 encoder profile Class 2 Set button
D8.1503.68B2.B212 Sendix 5868 (8.5868.21B2.B212) EtherCAT 10 ... 30 V DC 3 x radial M12 connector EtherCAT with CoE 3.2.10 no option
D8.1503.68C2.C212 Sendix 5868 (8.5868.21C2.C212) PROFINET IO 10 ... 30 V DC 3 x radial M12 connector PROFINET encoder profile Version 4.1 no option

Order code D8.35 03 . XXX 2 . 0000
with analogue sensor Type a b c
a Measuring range b Analogue sensor output / power supply c Type of connection Optional on request
03 = 3000 mm A11 = 4 ... 20 mA / 12 ... 30 V DC 2 = radial M12 connector, 4 pin - Other measuring ranges
A22 = 0 ... 10 V DC / 12 ... 30 V DC (wire exit direction)
A33 = potentiometer 10 k1 / max. 30 V DC
