Absolute encoders – multiturn

Large hollow shaft
optical / magnetic 9080 (hollow shaft) CANopen / DeviceNet
www.HydroSanatSharif.com

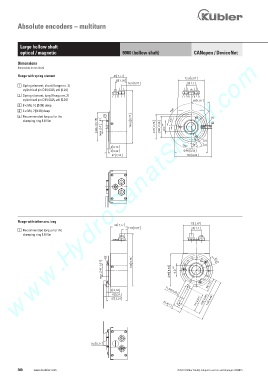

Dimensions
Dimensions in mm [inch]

Flange with spring element

1 Spring element, short (flange no. 2)
cylindrical pin DIN 6325, ø 6 [0.24]
2 Spring element, long (flange no. 3)
cylindrical pin DIN 6325, ø 6 [0.24]
3 3 x M6, 10 [0.39] deep
4 3 x M4, 7 [0.28] deep ƒ
5 Recommended torque for the
K > @ +
clamping ring 1.0 Nm ƒ
'
PD[

ƒ

ƒ

Flange with tether arm, long

1 Recommended torque for the
clamping ring 1.0 Nm

ƒ

+ '
PD[
