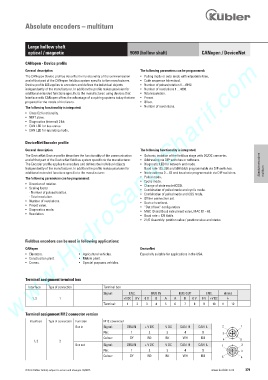

Absolute encoders – multiturn




             Large hollow shaft
             optical / magnetic                            9080 (hollow shaft)             CANopen / DeviceNet
        www.HydroSanatSharif.com
            CANopen - Device profile
            General description                                The following parameters can be programmed::
            The CANopen Device profiles describe the functionality of the communication   •  Polling mode or auto mode with adjustable time.
            and of that part of the CANopen fieldbus system specific to the manufacturer.   •  Code sequence (direction).
            Device profile 406 applies to encoders and defines the individual objects   •  Number of pulses/rotation 1 ... 8192.
            independently of the manufacturer. In addition the profile makes provision for   •  Number of revolutions 1 ... 4096.
            additional extended functions specific to the manufacturer; using devices that   •  Total resolution.
            interface with CANopen offers the advantage of acquiring systems today that are   •  Preset.
            prepared for the needs of the future.              •  Offset.
                                                               •  Number of revolutions.
            The following functionality is integrated:
            •  Class C2 functionality.
            •  NMT slave.
            •  Diagnostics (internal) 2 bit.
            •  CAN LED for bus status.
            •  CAN LED for operating mode.

            DeviceNet Encoder profile
            General description                                The following functionality is integrated:
            The DeviceNet Device profile describes the functionality of the communication   •  Galvanic isolation of the fieldbus stage with DC/DC converter.
            and of that part of the DeviceNet fieldbus system specific to the manufacturer.   •  Addressing via DIP switches or software.
            The Encoder profile applies to encoders and defines the individual objects   •  Diagnostic LED for network and mode.  Absolute encoders
            independently of the manufacturer. In addition the profile makes provision for     Baud rate 125, 250 and 500 kbit/s programmable via DIP switches.
            additional extended functions specific to the manufacturer.  •  Node address 0 ... 63 and baud rate programmable via DIP switches.  multiturn
                                                               •  Polled mode.
            The following parameters can be programmed:
                                                               •  Cyclic mode.
            •  Direction of rotation.                          •  Change of state mode (COS).
            •  Scaling factor                                  •  Combination of polled mode and cyclic mode.
              - Number of pulses/rotation.                     •  Combination of polled mode and COS mode.
              - Total resolution.                              •  Offline connection set.
            •  Number of revolutions.                          •  Device heartbeat.
            •  Preset value.                                   •  “Out of box” configuration
            •  Diagnostics mode.                               •  MAC ID and Baud rate preset value, MAC ID = 63.
            •  Resolution.
                                                               •  Baud rate = 125 kbit/s.
                                                               •  2 I/O Assembly: position value / position value and status.



            Fieldbus encoders can be used in following applications:
            CANopen                                            DeviceNet
            •  Elevators.           •  Agricultural vehicles.  Especially suitable for applications in the USA.
            •  Construction plant.  •  Mobile plant.
            •  Cranes.              •  Special purposes vehicles.



            Terminal assignment terminal box
               Interface      Type of connection      Terminal box
                                               Signal:    ENC.        BUS IN         BUS OUT                  ENC.      shield
                1, 2       1                            +V DC   0 V    0 V    B    A    A    B    0 V    0 V   +V DC      )

                                               Terminal:    1    2    3    4    5    6    7    8    9    10    11     12
            Terminal assignment M12 connector version
               Interface    Type of connection   Function   M12 connector
                                   Bus in      Signal:    DRAIN    + V DC    – V DC    CAN_H    CAN_L      2  1
                                               Pin:        1       2       3       4       5          3
                                               Colour:     GY      RD     BK      WH      BU        4
                1, 2       2                                                                                5
                                   Bus out     Signal:    DRAIN    + V DC    – V DC    CAN_H    CAN_L   1    2
                                               Pin:        1       2       3       4       5                3
                                               Colour:     GY      RD     BK      WH      BU        5       4


            © Fritz Kübler GmbH, subject to errors and changes. 02/2015                        www.kuebler.com  379
