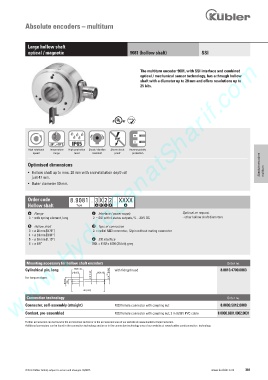

Page 383 - Keubler Motion Sensors

Absolute encoders – multiturn

Large hollow shaft
optical / magnetic 9081 (hollow shaft) SSI
www.HydroSanatSharif.com

The multiturn encoder 9081, with SSI interface and combined
optical / mechanical sensor technology, has a through hollow
shaft with a diameter up to 28 mm and offers resolutions up to
25 bits.

RoHS

-20°... +70°C IP65
High rotational Temperature High protection Shock / vibration Short-circuit Reverse polarity
speed range level resistant proof protection

Optimised dimensions Absolute encoders
• Hollow shaft up to max. 28 mm with an installation depth of multiturn
just 47 mm.
• Outer diameter 90 mm.

Order code 8.9081 . 3 X 2 2 . XXXX
Hollow shaft Type a b c d e

a Flange c Interface / power supply Optional on request
3 = with spring element, long 2 = SSI with 4 status outputs / 5 ... 30 V DC - other hollow shaft diameters

b Hollow shaft d Type of connection
3 = ø 20 mm [0.79“] 2 = radial M23 connector, 12 pin without mating connector
4 = ø 24 mm [0.94“]
5 = ø 28 mm [1.10“] e SSI interface
6 = ø 5/8“ 2004 = 8192 x 4096 (25 bit), gray

Mounting accessory for hollow shaft encoders Order no.
Cylindrical pin, long 1 5 . 0 [ 4 ] 5 [0.24] with fixing thread 8.0010.4700.0003
3 . 0 [ 9 ] 5 [0.24] 1 3 . 0 [ 0 ] 9 m6
for torque stops 6 6
SW10 M6

4 0 1[ 5 . ] 7
Connection technology Order no.
Connector, self-assembly (straight) M23 female connector with coupling nut 8.0000.5012.0000
Cordset, pre-assembled M23 female connector with coupling nut, 2 m [6.56‘] PVC cable 8.0000.6901.0002.0031

Further accessories can be found in the accessories section or in the accessories area of our website at: www.kuebler.com/accessories.
Additional connectors can be found in the connection technology section or in the connection technology area of our website at: www.kuebler.com/connection_technology.

© Fritz Kübler GmbH, subject to errors and changes. 02/2015 www.kuebler.com 381
