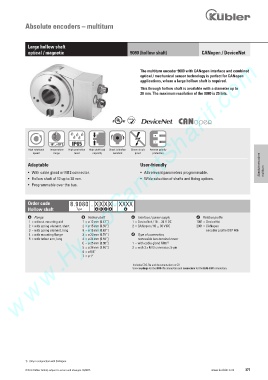

Absolute encoders – multiturn

Large hollow shaft
optical / magnetic 9080 (hollow shaft) CANopen / DeviceNet
www.HydroSanatSharif.com

The multiturn encoder 9080 with CANopen interface and combined
optical / mechanical sensor technology is perfect for CANopen
applications, where a large hollow shaft is required.
This through hollow shaft is available with a diameter up to
28 mm. The maximum resolution of the 9080 is 25 bits.

RoHS

-10°... +70°C IP65
High rotational Temperature High protection High shaft load Shock / vibration Short circuit Reverse polarity
speed range level capacity resistant proof protection

Adaptable User-friendly Absolute encoders
• With cable gland or M12 connector. • All relevant parameters programmable. multiturn
• Hollow shaft of 12 up to 28 mm. • Wide selection of shafts and fixing options.
• Programmable over the bus.

Order code 8.9080 . X X X X . XXXX
Hollow shaft Type a b c d e

a Flange b Hollow shaft c Interface / power supply e Fieldbus profile
1 = without mounting aid 1 = ø 12 mm [0.47“] 1 = DeviceNet / 10 ... 30 V DC 1001 = DeviceNet
2 = with spring element, short 2 = ø 15 mm [0.59“] 2 = CANopen / 10 ... 30 V DC 2001 = CANopen
3 = with spring element, long 9 = ø 16 mm [0.63“] encoder profile DSP 406
4 = with mounting flange 3 = ø 20 mm [0.79“] d Type of connection,
5 = with tether arm, long 4 = ø 24 mm [0.94“] removable bus terminal cover
C = ø 25 mm [0.98“] 1 = with cable gland M16 1)
5 = ø 28 mm [1.10“] 2 = with 3 x M12 connector, 5-pin
6 = ø 5/8“
7 = ø 1“

Includes EDS-file and documentation on CD
Use couplings for the BUS-IN connection and connectors for the BUS-OUT connection.

1) Only in conjunction with CANopen.
© Fritz Kübler GmbH, subject to errors and changes. 02/2015 www.kuebler.com 377
