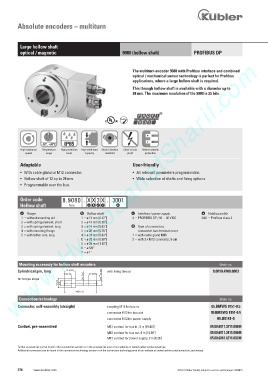

P. 376
Absolute encoders – multiturn
Large hollow shaft
optical / magnetic 9080 (hollow shaft) PROFIBUS DP
www.HydroSanatSharif.com
The multiturn encoder 9080 with Profibus interface and combined
optical / mechanical sensor technology is perfect for Profibus
applications, where a large hollow shaft is required.
This through hollow shaft is available with a diameter up to
28 mm. The maximum resolution of the 9080 is 25 bits.
RoHS
-10°... +70°C IP65
High rotational Temperature High protection High shaft load Shock / vibration Short-circuit Reverse polarity
speed range level capacity resistant proof protection
Adaptable User-friendly
• With cable gland or M12 connector. • All relevant parameters programmable.
• Hollow shaft of 12 up to 28 mm. • Wide selection of shafts and fixing options.
• Programmable over the bus.
Order code 8.9080 . X X 3 X . 3001
Hollow shaft Type a b c d e
a Flange b Hollow shaft c Interface / power supply e Fieldbus profile
1 = without mounting aid 1 = ø 12 mm [0.47“] 3 = PROFIBUS DP / 10 ... 30 V DC 3001 = Profibus class 2
2 = with spring element, short 2 = ø 15 mm [0.59“]
3 = with spring element, long 9 = ø 16 mm [0.63“] d Type of connection,
4 = with mounting flange 3 = ø 20 mm [0.79“] removable bus terminal cover
5 = with tether arm, long 4 = ø 24 mm [0.94“] 1 = with cable gland M16
C = ø 25 mm [0.98“] 2 = with 3 x M12 connector, 5-pin
5 = ø 28 mm [1.10“]
6 = ø 5/8“
7 = ø 1“
Mounting accessory for hollow shaft encoders Order no.
Cylindrical pin, long 1 5 . 0 [ 4 ] 5 [0.24] with fixing thread 8.0010.4700.0003
3 . 0 [ 9 ] 5 [0.24] 1 3 . 0 [ 0 ] 9 m6
for torque stops 6 6
SW10 M6
4 0 1[ 5 . ] 7
Connection technology Order no.
Connector, self-assembly (straight) coupling M12 for bus in 05.BMWS 8151-8.5
connector M12 for bus out 05.BMSWS 8151-8.5
connector M12 for power supply 05.B8141-0
Cordset, pre-assembled M12 cordset for bus in , 6 m [19.68‘] 05.00.6011.3211.006M
M12 cordset for bus out, 6 m [19.68‘] 05.00.6011.3411.006M
M12 cordset for power supply, 2 m [6.56‘] 05.00.6061.6211.002M
Further accessories can be found in the accessories section or in the accessories area of our website at: www.kuebler.com/accessories.
Additional connectors can be found in the connection technology section or in the connection technology area of our website at: www.kuebler.com/connection_technology.
374 www.kuebler.com © Fritz Kübler GmbH, subject to errors and changes. 02/2015
